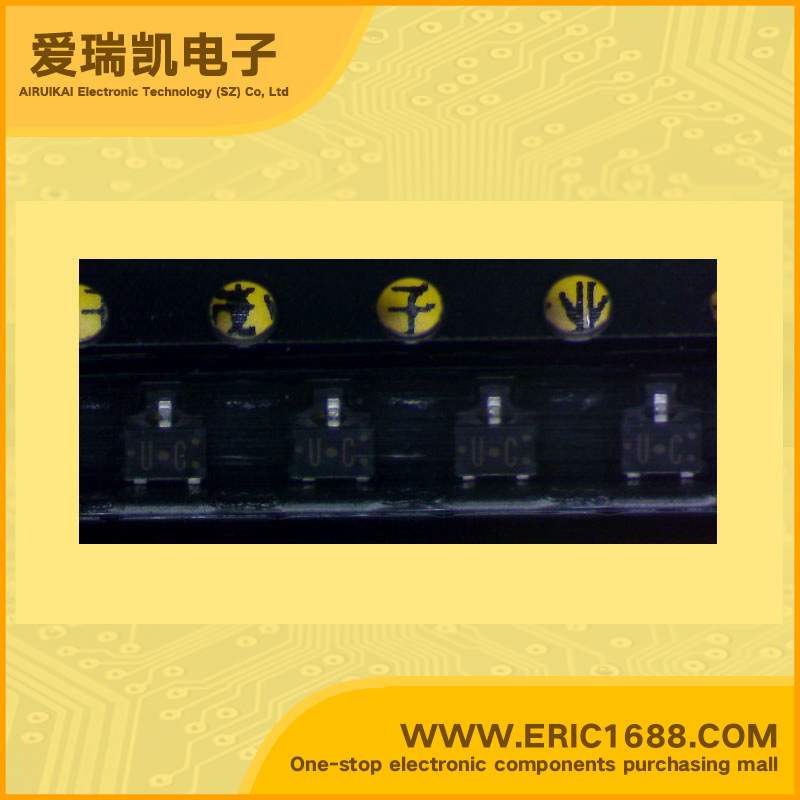

2SC3931-C NPN三极管 30V 15mA 650MHz 65~160 SOT-323/SC-70 marking/标记 UC 射频放大 FM/AM收音机
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流ICCollector Current(IC) | 15mA |
| 截止频率fTTranstion Frequency(fT) | 650MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 65~160 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | Silicon NPN epitaxial planer type For high-frequency amplification Optimum for RF amplification of FM/AM radios High transition frequency fT S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | NPN硅外延平面型 用于高频放大 最适用于射频放大FM/ AM收音机 高转换频率FT S-迷你型包装，通过带盒包装允许减小设备规模和自动插入 |
| 规格书PDF |
