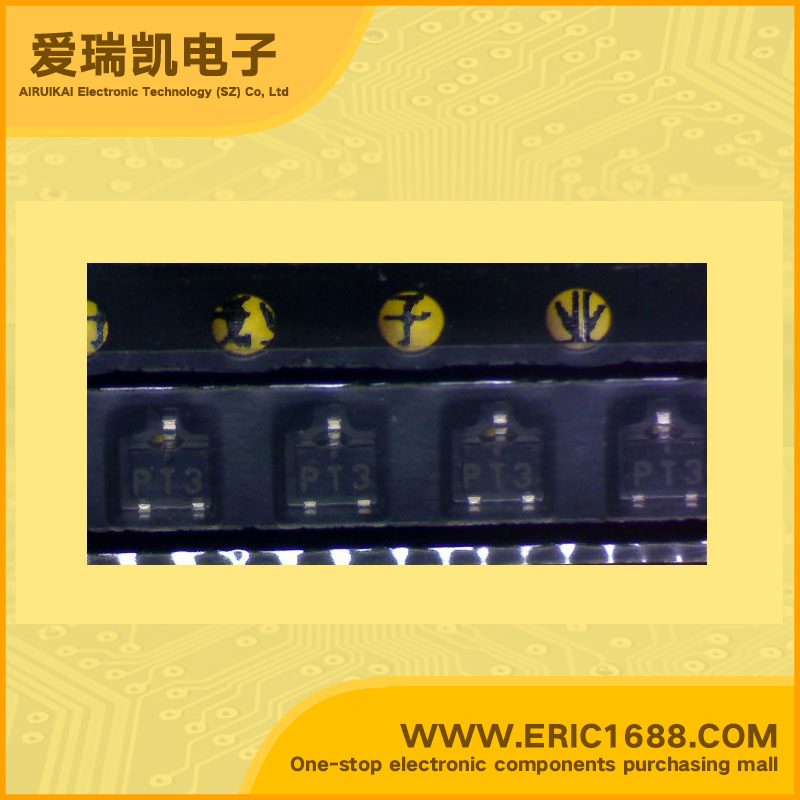

2SC4402-3 NPN三极管 25V 50mA 3GHz 60~120 SOT-323/SC-70/MCP marking/标记 PT3 甚高频/超高频混频器 低压高频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 25V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 3GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 60~120 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 150mW/0.15W |
| Description & Applications | NPN epitaxial planer Silicon transistor VHF/UHF MIX/OSC,low-voltage high-frequecy amplifiers Low-voltage operation Very small-sized package permitting 2SC4402-applied sets to be made smaller and slimmer |
| 描述与应用 | NPN外延刨床硅的晶体管 甚高频/ 超高频混频器，低压高频放大器 低电压工作 非常小的封装允许2SC4402应用设置更小和更薄 |
