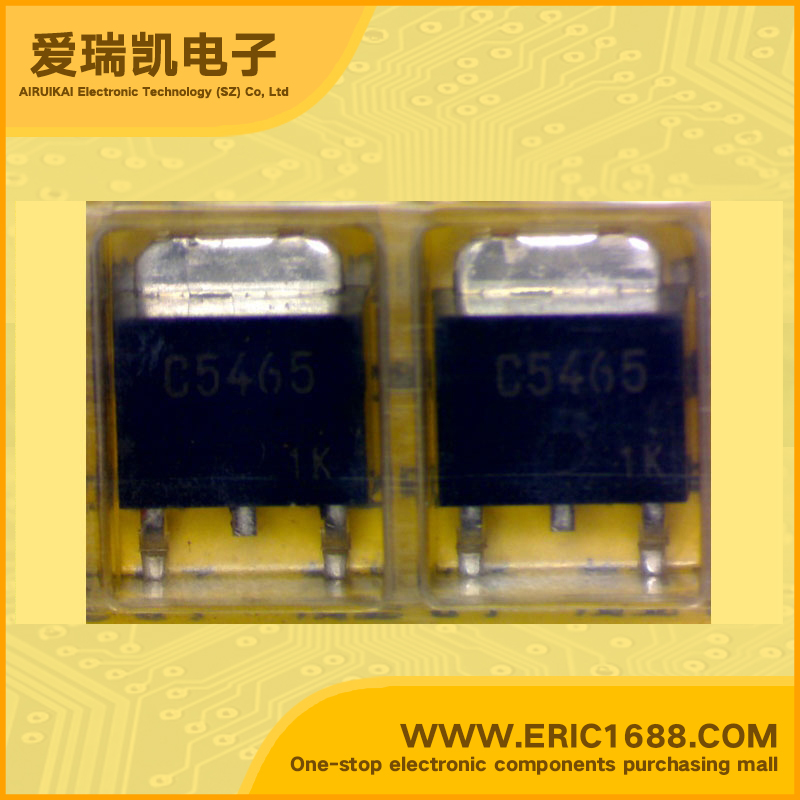

2SC5465 NPN三极管 900V 800mA/0.8A >10 <1V TO-252/DPAK/PW-Mold marking/标记 C5465 开关稳压器和高压开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 900V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 800V |
| 集电极连续输出电流ICCollector Current(IC) | 800mA/0.8A |
| 截止频率fTTranstion Frequency(fT) | |
| 直流电流增益hFEDC Current Gain(hFE) | >10 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | <1V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | Silicon NPN triple diffused type switching regulator and high voltage switching application high speed DC-DC converter application excellent switching time high collector breakdown voltage |
| 描述与应用 | 硅NPN三重扩散类型 开关稳压器和高压开关 应用 高速的DC-DC转换器应用 出色的开关时间 集电极击穿电压高 |
