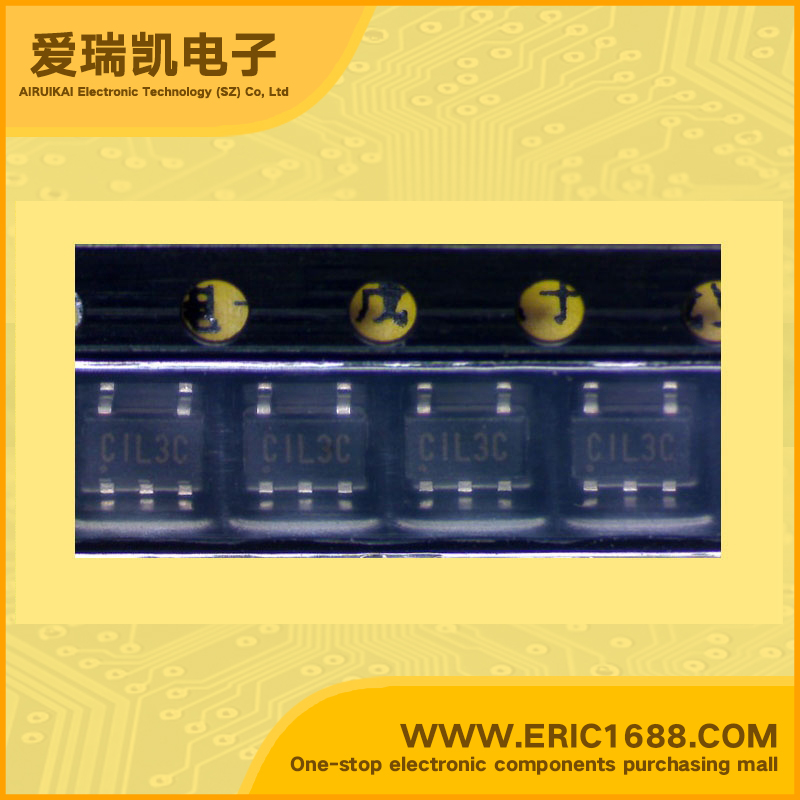

AAT3215IGV-2.85 LDO电压调整器/稳压电源IC 2.85V 140mV/0.14V 带使能脚EN/CE SOT-153/SOT23-5 marking/标记 CIL3C 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 6V |
| 输出电压VOUTVoltage - Output | 2.85V |
| 输出电流IoCurrent - Output | 150mA/0.15A |
| 最大压降VDOVoltage - Dropout | 140mV/0.14V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 526mW/0.526W |
| Description & Applications | 150mA CMOS High Performance LDO;• Low Dropout: 140mV at 150mA • Guaranteed 150mA Output • High Accuracy ±1.5% • 95µA Quiescent Current • High Power Supply Ripple Rejection — 70dB at 1kHz — 50dB at 10kHz • Very Low Self Noise: 45µVrms • Fast Line and Load Transient Response • Short-Circuit Protection • Over-Temperature Protection • Uses Low Equivalent Series Resistance (ESR) Ceramic Capacitors • Noise Reduction Bypass Capacitor • Shutdown Mode for Longer Battery Life • Low Temperature Coefficient • Ten Factory-Programmed Output Voltages • SOT23 5-Pin or SC70JW 8-Pin Package |
| 描述与应用 | 150MA CMOS高性能LDO;•低压差：150mA时压差为140mV •保证150mA输出 •高精度±1.5％ •95μA静态电流 •高电源纹波抑制 - 1kHz时为70dB - 10kHz时为50dB •极低的自噪声：45μVRMS •快速电压和负载瞬态响应 •短路保护 •过温保护 •使用低等效串联电阻 （ESR）陶瓷电容器 •降噪绕道电容 •关断模式，有/yes更长的电池寿命 •低温度系数 |
