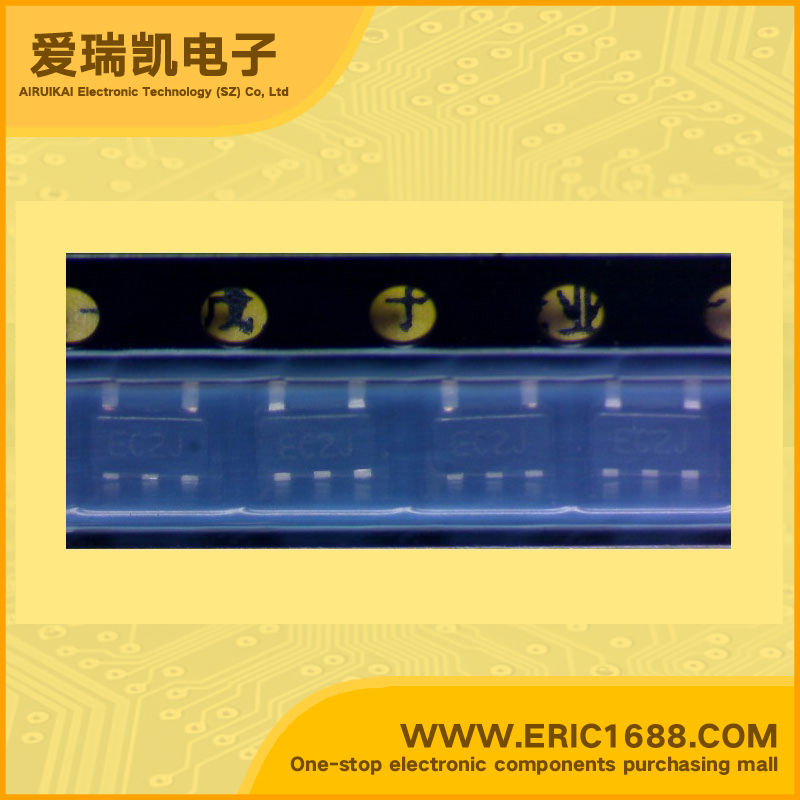

AIC1730-285CV LDO电压调整器/稳压电源IC 2.85V 700mV/0.7V SOT-153/SOT23-5 marking/标记 EC2J 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input12V
输出电压VOUTVoltage - Output2.85V
输出电流IoCurrent - Output150mA/0.15A
最大压降VDOVoltage - Dropout700mV/0.7V
带使能脚EN/CE(ON/OFF功能)With Enable Pin无 No
最大耗散功率PdPower dissipation500mW/0.5W
Description & ApplicationsLow Noise Low Dropout, 150mA Linear Regulator ;• Available in ±2% Output Tolerance. • 1.8V to 3.3V Output Voltage with 0.1V Increment. • Active Low Shutdown Control. • Very Low Quiescent Current. • Very Low Dropout Voltage. • Miniature Package (SOT-23-5 & SOT-23-6W) • Short Circuit and Thermal Protection. • Very Low Noise. • Cellular Telephones. • Pagers. • Personal Communication Equipment. • Cordless Telephones. • Portable Instrumentation. • Portable Consumer Equipment. •Radio Control Systems. • Low Voltage Systems. • Battery Powered Systems.
描述与应用低噪声,低差,150mA线性稳压器;•可在±2%输出公差。 •1.8V至3.3V输出电压0.1V递增。 •低电平有效关断控制。 •非常低的静态电流。 •非常低压差电压。 •小型封装(SOT-23-5和SOT-23-6W) •短路和热保护。 •非常低的噪音。 •蜂窝电话。 •传呼机。 •个人通讯设备。 •无绳电话。 •便携式仪表。 •便携式消费电子设备。 •无线控制系统。 •低电压系统。 •电池供电系统。
规格书PDF
