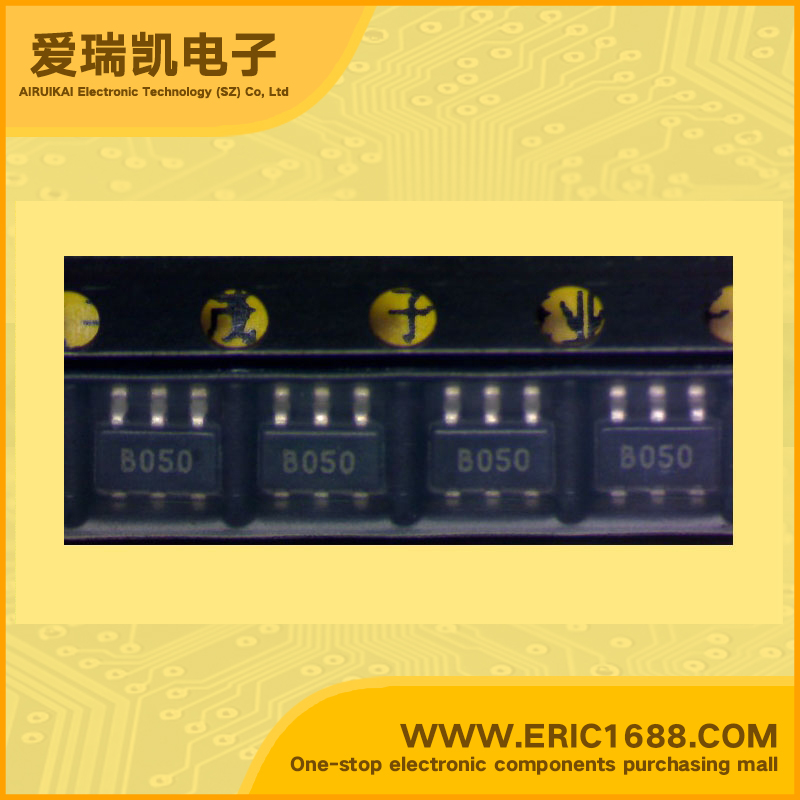

AIC1845CG 电压调整器/稳压电源IC 5V SOT-163/SOT23-6 marking/标记 B050 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 2.7~5V |
| 输出电压VOUTVoltage - Output | 5V |
| 输出电流IoCurrent - Output | 60mA |
| 最大压降VDOVoltage - Dropout | |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | Regulated 5V Charge Pump In SOT-23 ;•Ultralow Power:IN = 13µA •Regulated 5V ±4% Output Voltage • Output Current: 100mA (VIN =3.3V) 110mA (VIN =3.6V) • Input Range: 2.7V to 5.0V •Very Low Shutdown Current: <1µA • Internal Oscillator: 650KHz • Short-Circuit and Overtemperature Protection •6-Pin SOT-23 Package •White or Blue LED Backlighting •SIM Interface Supplies for Cellular Telephones • Li-Ion Battery Backup Supplies •Smart Card Readers |
| 描述与应用 | 5V稳压电荷泵在SOT-23;•超低功耗：IN=13μA •稳压5V±4％的输出电压 •输出电流：100mA（VIN=3.3V）110毫安（VIN=3.6V） •输入电压范围：2.7V至5.0V •非常低停机电流：<1μA •内部振荡器：650kHz的 •短路和过热保护 •6引脚SOT-23封装 •白色或蓝色LED背光 •蜂窝电话的SIM接口用品 •锂离子电池备用电源 •智能卡读卡器 |
| 规格书PDF |
