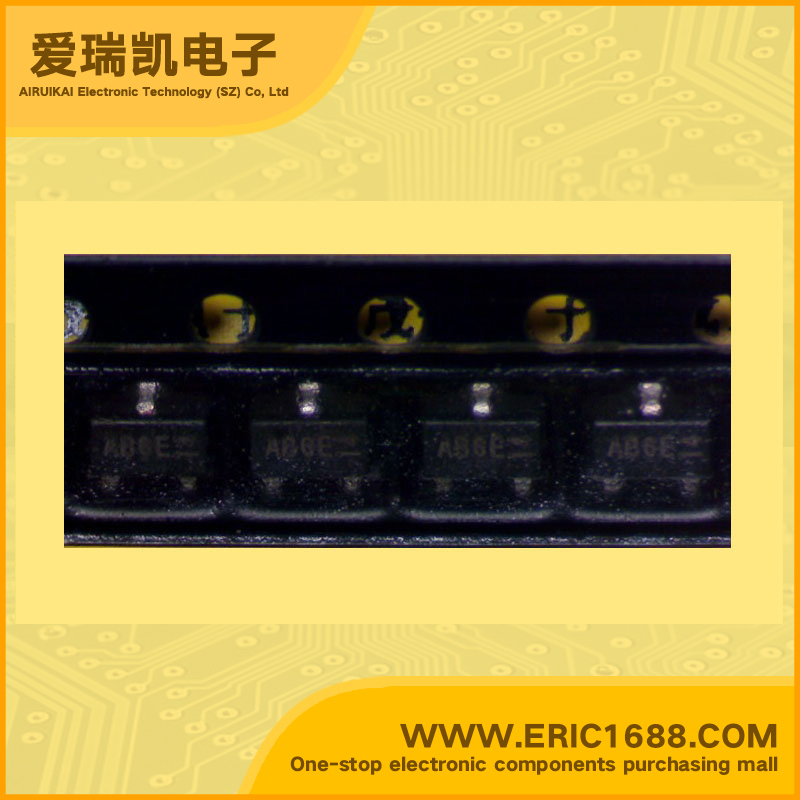

AO3411 P沟道MOS场效应管 SOT-23 marking/标记 AB6
最大源漏极电压VdsDrain-Source Voltage | -20V |
最大栅源极电压Vgs(±)Gate-Source Voltage | ±8V |
最大漏极电流IdDrain Current | -4.4A |
源漏极导通电阻RdsDrain-Source On-State Resistance | |
开启电压Vgs(th)Gate-Source Threshold Voltage | |
耗散功率PdPower Dissipation | 1.4W |
Description & Applications | The AO3411 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM applications. |
描述与应用 | AO3411采用先进沟道技术,提供出色的RDS(ON),低栅极电荷和操作与栅极电压可低至1.8V。这个装置是适合用于作为负载开关或PWM应用。 |
