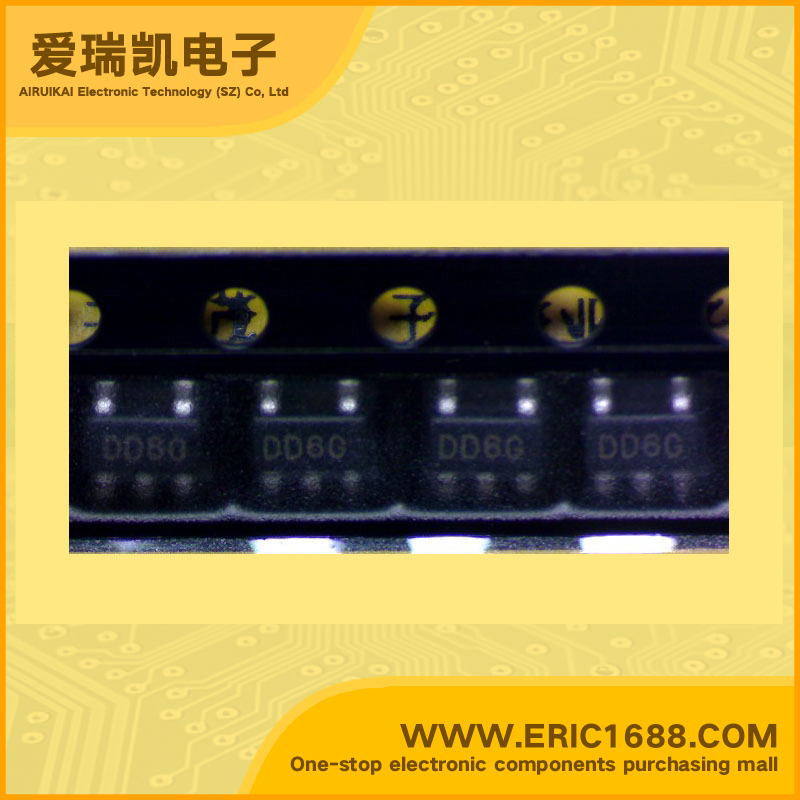

AP131-18WA LDO电压调整器/稳压电源IC 1.5V 400mV/0.4V 带使能脚EN/CE SOT-23 marking/标记 DD6G 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 6V |
| 输出电压VOUTVoltage - Output | 1.5V |
| 输出电流IoCurrent - Output | 300mA/0.3A |
| 最大压降VDOVoltage - Dropout | 400mV/0.4V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 250mW/0.25W |
| Description & Applications | 300mA Low Dropout Linear Regulator with Shutdown；•Input voltage range is up to 7V • Dropout voltage 400mV at 300mA output current •Guaranteed 300mA output current. •Low quiescent current 50µA •Output voltage 2% accuracy, and 1.5V to 5V with 0.1V step - Active low shutdown function (EN pin). - Fast transient response - Good load regulation - Current limit and thermal shutdown protection - SOT89-5L and SOT23-5L packages - Wireless Communication - Battery Powered device - CD-ROM, DVD, and LAN Card - PC peripheral |
| 描述与应用 | 300mA的低压差线性稳压器关机;•输入电压范围为7V •漏失电压400mV的300mA输出电流 •保证300mA的输出电流。 •低静态电流50μA •输出电压精度为2％，1.5V至5V与0.1V步骤 - 主动关机功能低（EN脚）。 - 快速瞬态响应 - 良好的负载调节 - 电流限制和热关机保护 - SOT89-5L和SOT23-5L封装 - 无线通信 - 电池供电设备 - CD-ROM，DVD，网卡 - 电脑周边 |
| 规格书PDF |
