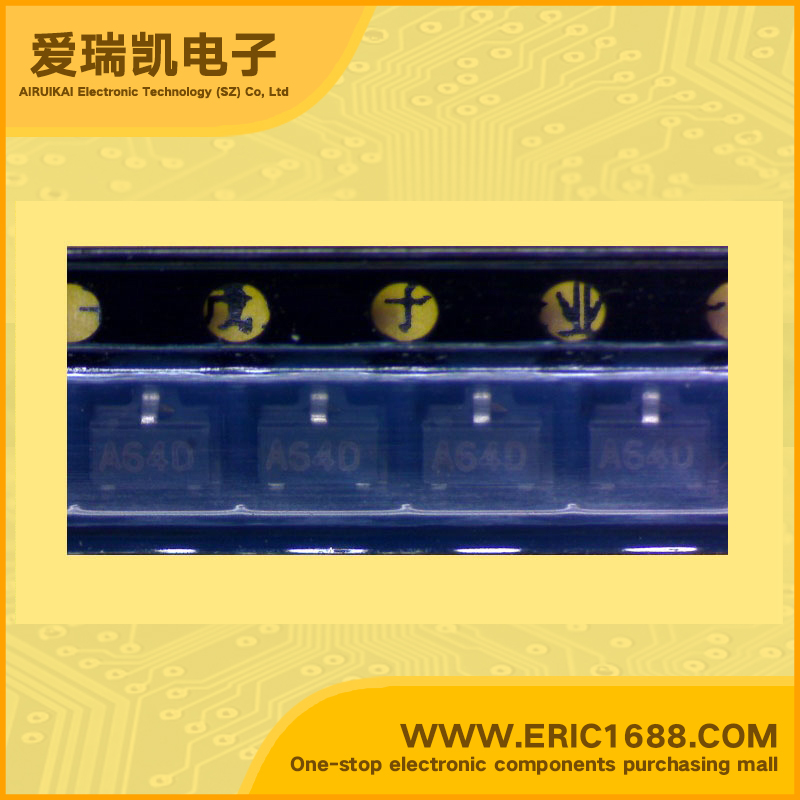

AP431WA 电压基准电源IC 2.495V~36V SOT-23 marking/标记 A6 可编程输出电压
| 参考类型Reference Type | |
| 输出电压VoVoltage - Output | 2.495V~36V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 30ppm/°C |
| 输入电压Voltage - Input | 2.495V~36V |
| 阴极电流Current - Cathode | 300uA |
| 输出电流IOUTCurrent - Output | 200mA/0.2A |
| Description & Applications | FEATURES • Precision reference voltage AP431 : 2.495V ± 1% AP431A : 2.495V ± 0.5% • Sink current capability: 200mA • Minimum cathode current for regulation: 300μA • Equivalent full-range temp coefficient: 30 ppm/oC • Fast turn-on response • Low dynamic output impedance: 0.2Ω • Programmable output voltage to 36v • Low output noise. • Packages: TO92, SOT89, SOT23, SOT25 and SOP |
| 描述与应用 | 特点 •精密参考电压 AP431：2.495V±1％ AP431A：2.495V±0.5％ •灌电流能力时：200mA •最小阴极电流调节：300μA •等效满量程温度系数：30 PPM/℃ •快速导通响应 •低动态输出阻抗：0.2Ω •可编程输出电压为36V •低输出噪声。 •封装：TO92，SOT89，SOT23，SOT25和SOP |
| 规格书PDF |
