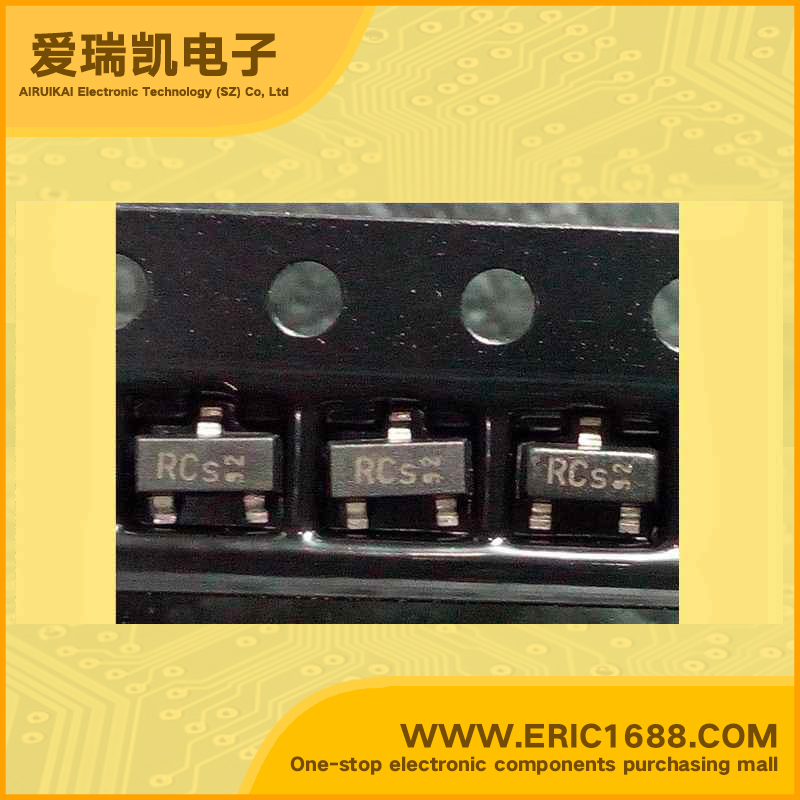

BFR193 NPN三极管 20V 80mA 8Ghz 50~200 SOT-23/SC-59 marking/标记 RC 低噪声，高增益宽带放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 12V |
| 集电极连续输出电流ICCollector Current(IC) | 80mA |
| 截止频率fTTranstion Frequency(fT) | 8Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | 580mW/0.58W |
| Description & Applications | NPN Silicon RF Transistor For low noise, high-gain amplifiers up to 2 GHz For linear broadband amplifiers T = 8 GHz F = 1.3 dB at 900 MHz |
| 描述与应用 | NPN硅RF晶体管 低噪声，高增益放大器高达2 GHz 对于线性宽带放大器 T = 8 GHz F = 1.3 dB at 900 MHz |
| 规格书PDF |
