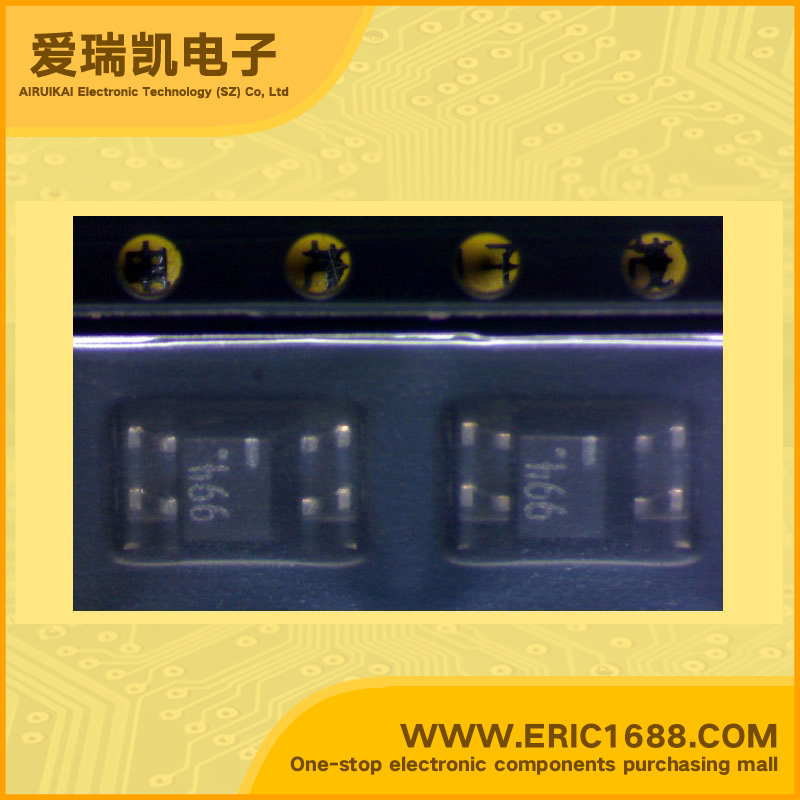

霍尔IC DN8899S SOH-4D marking/标记 994
| 感应范围Sensing Range | -6/6mT跳闸,10mT释放 -6/6mT Trip,10mT Release |
| 类型Type | 霍尔效应开关 Hall Effect Switch |
| 电源电压Voltage - Supply | 18V |
| 电源电流Current - Supply | 8mA |
| 输出电流Current - Output (Max) | |
| Description & Applications | Hall IC (Operating Temperature Range Topr=–40 to+ 100˚C,Operating in Alternative Magnetic Field) Overview The DN8899/SE/TE/S is a combination of a Hall element, amplifier, Schmidt circuit, and stabilized power supply/temperature compensator integrated on an identical chip by using the IC technology. It amplifies Hall element output at the amplifier, converts into a digital signal through the Schmidt circuit, and drives the TTL or MOS IC directly. Wide operating temperature range(−40°C to +100°C) Alternating magnetic field operation ■ Overview In each of Hall ICs, a Hall element, an amplifier circuit,a Schmidt circuit, a stabilized power supply, and a temperature compensation circuit are integrated on a singlechip by IC technique. The Hall element output is amplified by the amplifier circuit, and converted into the corresponding digital signals through the Schmidt circuit so that TTL and MOS IC are directly drivable. Features • High sensitivity and low drift • Stable temperature characterstics due to the additional temperture compensator • Wide operating supply voltage range (VCC=4.5 to 16V) • Operatig in alternative magnetic field • TTL and MOS ICs directly drivable by output • Provided with the output pull-up resistors (typ 27kΩ) • “0” gauss point in the zero cross type hysteresis width |
| 描述与应用 | 霍尔IC（工作温度范围 TOPR= -40至+100˚C，工作在交变磁场） 概观 的DN8899/SE/TE/S是霍尔元件的组合， 通过使用相同的芯片上集成放大器，施密特电路，稳压电源/温度补偿 IC技术。霍尔元件的输出进行放大的放大器，将其转换成数字信号通过施密特电路，直接驱动的TTL或MOS集成电路。 •高灵敏度和低漂移 •由于温辐射补偿的额外稳定的温度特性研究 •宽工作电压范围（VCC=4.5〜16V） •Operatig在交变磁场 •TTL和MOS IC的输出直接驱动 •输出提供上拉电阻（27KΩ典型值） “0”高斯零交叉点型迟滞宽度 |
