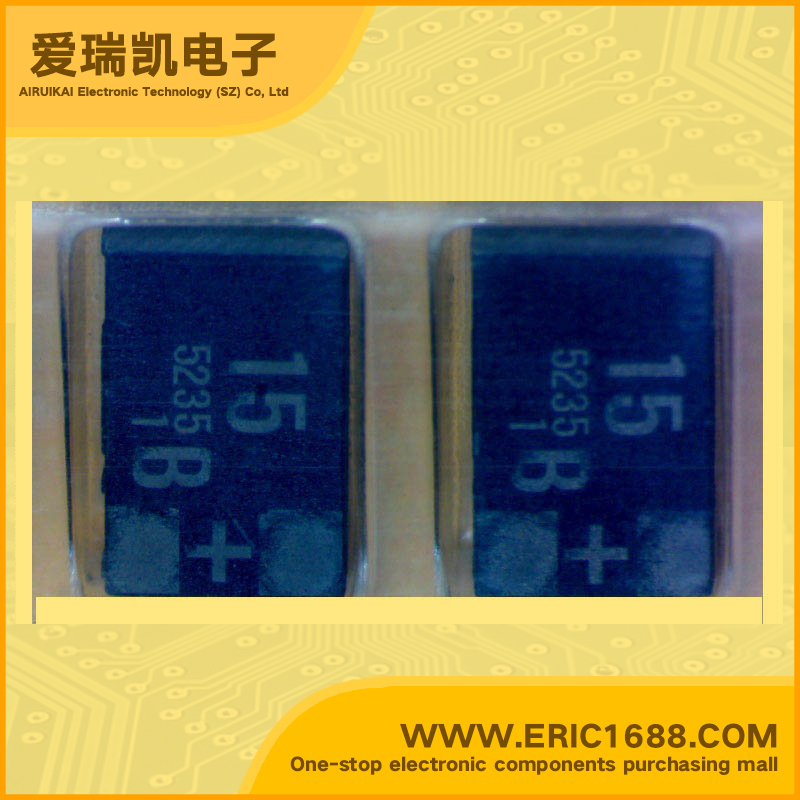

贴片电解电容 ECGC1B150R 15?F SMC/DO-214AB marking/标记 15
| 电容值Capacitance | 15µF |
| 容差Tolerance | ±20 % |
| 额定电压Voltage Rating | 15V |
| 不同温度时的使用寿命Lifetime @ Temp. | 1000h at 105°C |
| 纹波电流Ripple Current | 1.3A |
| Description & Applications | Features Low impedance at high frequency (10 kHz to 10 MHz) as low as ceramic capacitors (Reduced ESR due to an applying speciality polymer with high conductivity.) Excellent Noise-absorbent Characteristics Surface Mount (Reflow soldering method available) Very stable capacitance, impedance and ESR against temperature l Excellent endurance characteristics due to adoption of solid electrolyte 4-terminal-construction helps further low impedance. |
| 描述与应用 | 特点 在高频低阻抗（10 kHz至 10兆赫）低至陶瓷电容器 （降低ESR，由于申请特种聚合物 具有高导电性）。 优异的噪声吸收特性 表面贴装（回流焊接方法） 非常稳定的电容，阻抗和ESR 对温度 l优秀的耐力特点，由于采用 固体电解质 施工4端子，可以进一步低的阻抗。 |
