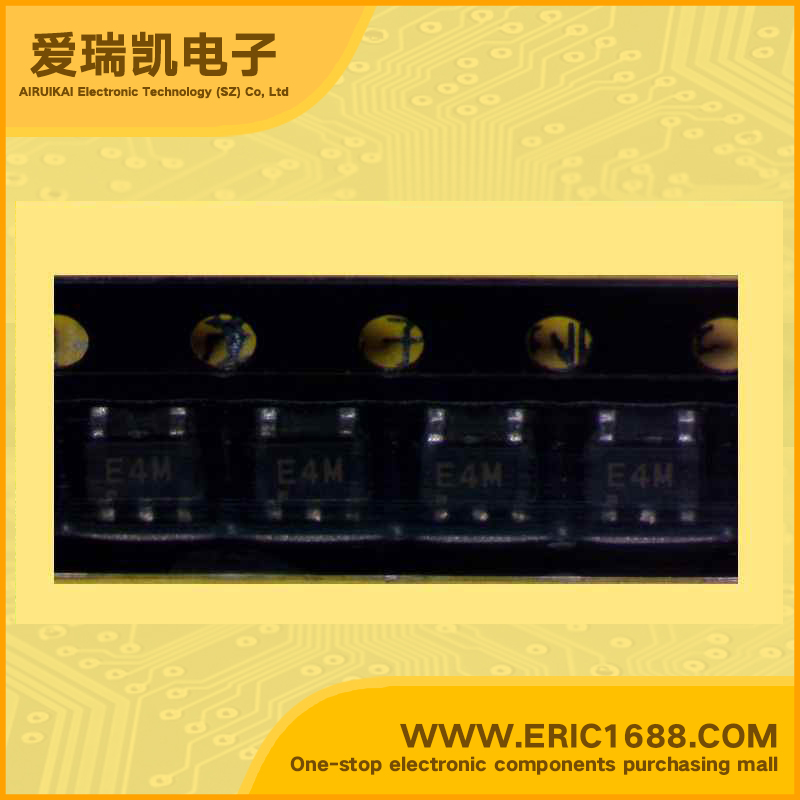

集成电路IC 或门 ELM7S32EL SOT-153/SOT-25 marking/标记 E4M
| 逻辑类型Logic Type | 或门 OR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~6V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.8V |
| 高逻辑电平Logic Level - High | 1.5V~4.2V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7ns @ 4.5V，50pF |
| Description & Applications | 2-input OR Gate；Features Package : SOT-25 package Same electrical characteristics as 74HC Series Power voltage range : 2.0～6.0V Operation temp. range : -40～+85℃ | IOH | = IOL = 2mA (min) |
| 描述与应用 | 双输入或门;特性 封装形式：SOT-25封装 74HC系列相同的电气特性 电源电压范围：2.0〜6.0V 工作温度。范围：-40〜+85℃ | IOH= IOL=2毫安（最小） |
| 规格书PDF |
