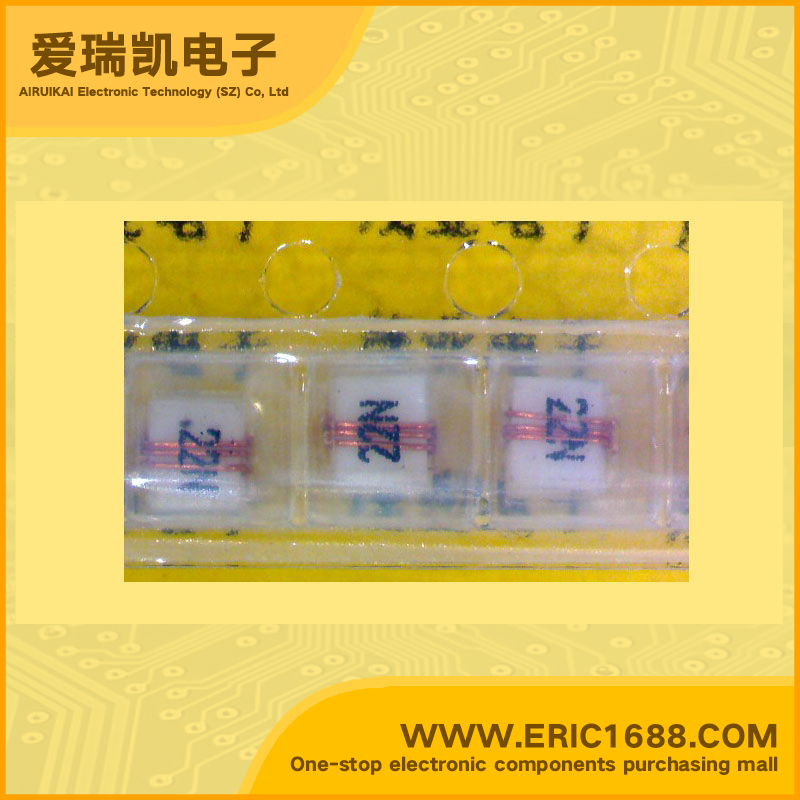

小功率电感 FHW1008UC022JGT 22nH 1008-22NJ

热销商品

产品描述
电感值Inductance22nH
误差Tolerance±5%
额定电流Current Rating1000mA
饱和电流Current - Saturation
不同频率时的Q值Q @ Frequency55 @ 350MHz
自振谐频率SRFFrequency - Self Resonant2.4GHz
DC电阻DCRDC Resistance (DCR)0.12Ω/Ohm
屏蔽Shielding无屏蔽 Unshielded
Description & ApplicationsWIRE WOUND CHIP INDUCTOR OUTLINE Wire wound chip inductor is a perfect combine by means of combining high precision coil framework with superb wound technology .comparable with traditional inductor, it is improved technology, reduced and changed the lead into a kind of terminal electrode structure suitable for SMT FEATURES Miniature size, Suitable for SMT; Using terminal electrode structure; to restrain the parasitic component effect quite caused by lead; Better frequency special property and intense ability to resist interference; Excellent in solder ability and heat resistance; High application frequency, high precision production and good unanimity.
描述与应用绕线片式电感器 概要 绕线片式电感器是一种通过结合高精密线圈骨架与高超的伤口技术的完美结合,与传统的电感器相媲美,它是改进技术,降低,改变了铅端子电极结构成一种适合SMT 特点  体积小,适用于SMT;  使用终端电极结构,以抑制寄生元件铅所造成的效果相当;  特殊属性更好的频率和激烈的抗干扰能力;  具有优良的可焊性和耐热性;  应用频率高,精度高,生产和良好的一致。
规格书PDF
