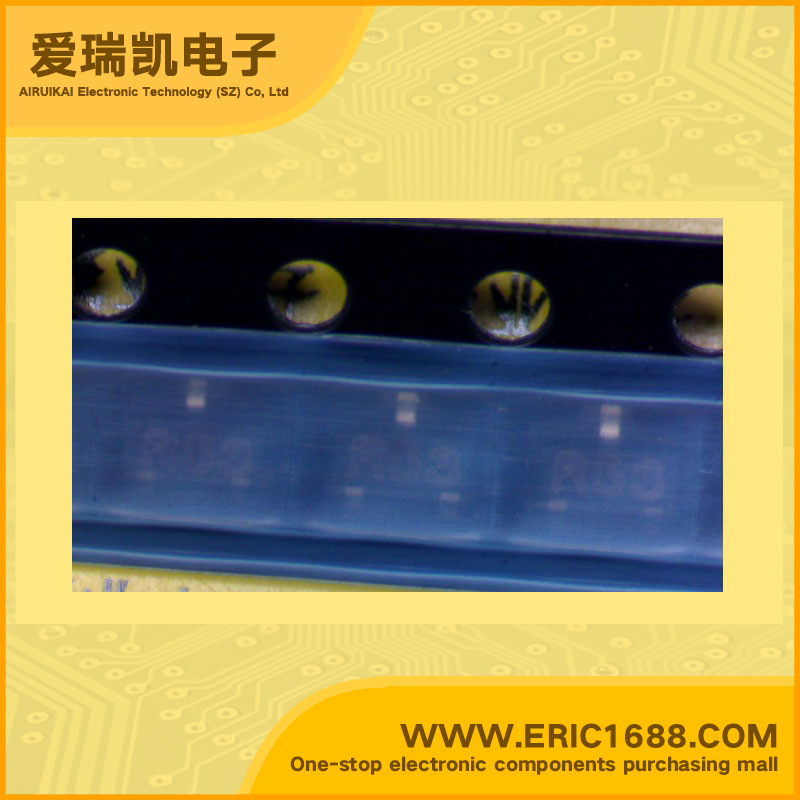

KSR2103 带阻尼PNP三极管 -50V -100mA/-0.1A 56 0.2W/200mW SOT-23/SC-59 标记R53 开关电路，逆变器，接口电路，驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 22KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 22KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 56 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R1=22KΩ, R2=22KΩ) • Complement to KSR1103 |
| 描述与应用 | 特点 •开关电路，逆变器，接口电路，驱动器电路 •内置偏置电阻（R1=22KΩ，R2=22KΩ） •KSR1103补 |
| 规格书PDF |
