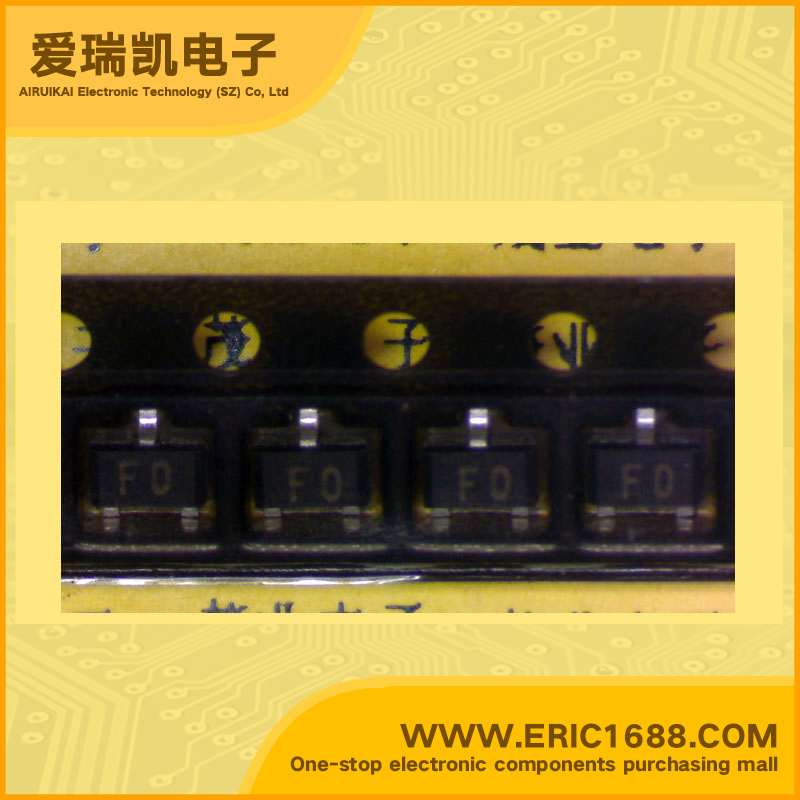

KV1400TL 变容二极管 17V 57.71pF-64.63pF 2.35 SOT-23/SC-59 marking/标记 FO 调谐/高电容率/超低串联电阻
| 反向电压VRReverse Voltage | 17V |
| 电容值CDiode capacitance | 57.71pF-64.63pF |
| @反向电压VR@Reverse Voltage | 3V |
| 电容值CDiode capacitance | 23.38pF-27.29pF |
| @反向电压VR@Reverse Voltage | 8V |
| 电容比Capacitance ratio | 2.35 |
| Description & Applications | Excellent Linearity (CV Curve) Large Capacitance Ratio (A = 2.10 minimum) with Very Low Series Resistance Two Diodes in a Miniature Package (SOT23-3) Very Small Capacitance Deviation at Tape/Reel FM Electronic Tuning Voltage Controlled Oscillator |
| 描述与应用 | 出色的线性度（CV曲线） 大电容率及超低串联电阻（A =2.10最低） 两个二极管在一个微型封装（SOT23-3） 非常小的电容偏差带/卷 FM电子调谐 压控振荡器 |
| 规格书PDF |
