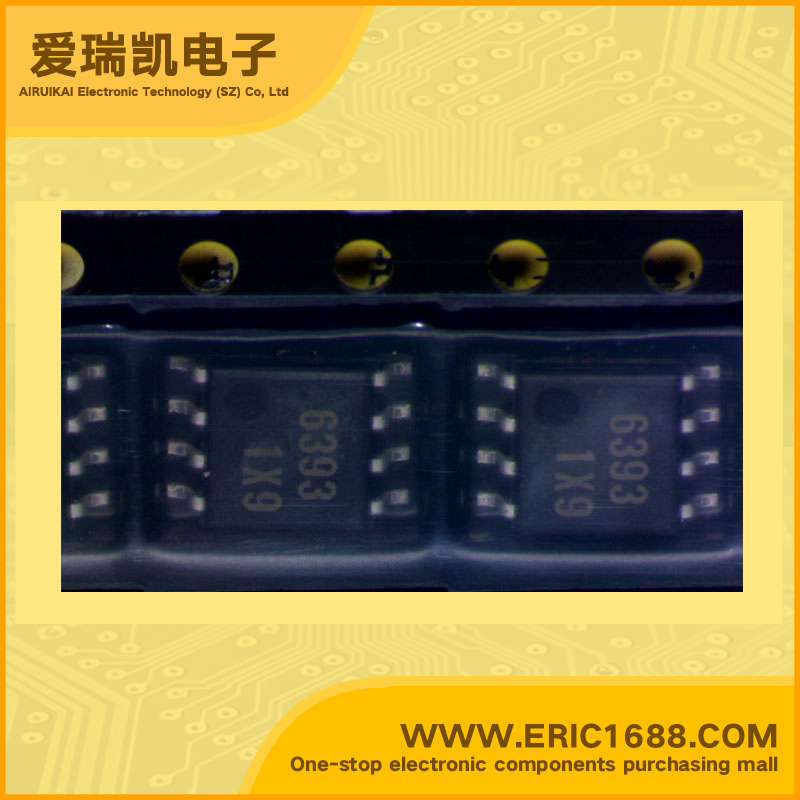

比较器 LA6393MLL MFP8 marking/标记 6393
| 类型Type | |
| 元件数Number of Elements | 2 |
| 输出类型Output Type | 开路集电极 Open Collector |
| 电源电压，单/双 (±)Voltage - Supply, Single/Dual (±) | 2 V~36 V，±1 V~18 V |
| 输入失调电压（最大值）Voltage - Input Offset (Max) | ±5mV |
| 输入偏置电流（最大值）Current - Input Bias (Max) | 0.25µA |
| 输出电流（典型值）Current - Output (Typ) | 16mA |
| 静态电流（最大值）Current - Quiescent (Max) | 1mA |
| CMRR，PSRR（典型值）CMRR, PSRR (Typ) | |
| 传播延迟（最大值）Propagation Delay (Max) | |
| 滞后Hysteresis | |
| Description & Applications | FEATURES • High-Performance dual Comparator • Wide supply voltage range (Single supply : 2.0 to 36.0V,dual supplies : ±1.0 to 18.0V). • Wide common-mode input voltage range (0 to VCC–1.5V). • Open collector output enabling wired OR. • Small current dissipation (0.6mA) and low power. • Mini flat package enabling compactness of sets. |
| 描述与应用 | 特点 •高性能双比较器 •宽电源电压范围（单电源：2.0〜36.0V，双电源：±1.0〜18.0V）。 •宽共模输入电压范围（0到VCC-1.5V）。 •集电极开路输出，使有线或。 •小的电流损耗（0.6毫安）和低功耗。 •迷你平板包装，使紧凑套。 |
| 规格书PDF |
