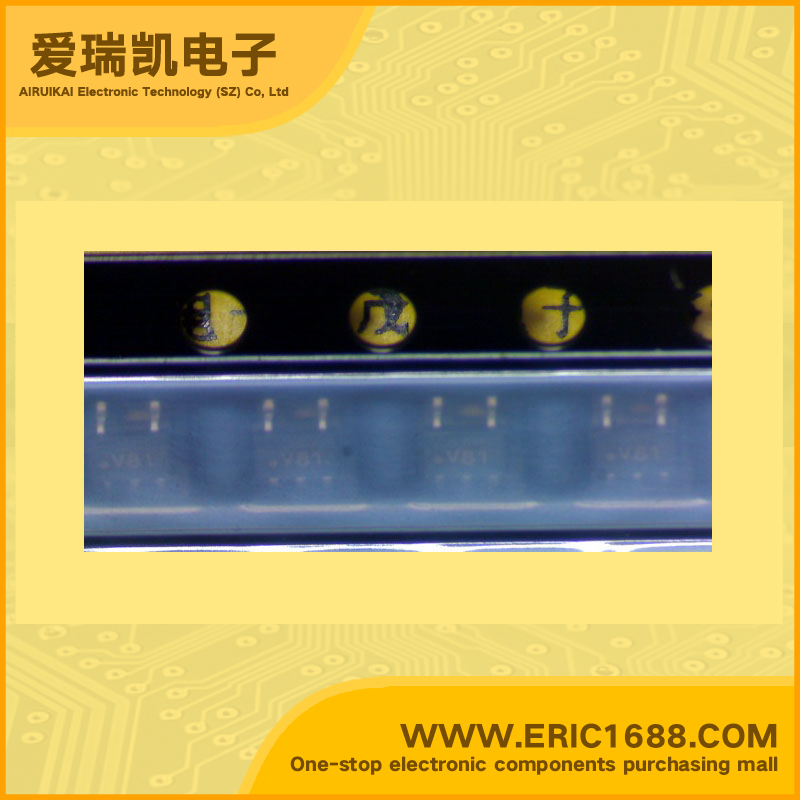

集成电路IC 异或门 MC74VHC1G86DFT2 SOT-353/SC-88A/SC70-5 marking/标记 V8
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.5V~1.65V |
| 高逻辑电平Logic Level - High | 1.5V~3.85V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 8.8ns @ 5V，50pF |
| Description & Applications | Single 2−Input Exclusive OR Gate ；Features High Speed: tPD = 3.5 ns (Typ) @VCC = 5 V Low Power Dissipation: ICC = 1uA (Max) @TA = 25°C Power Down Protection Provided on Inputs Balanced Propagation Delays Pin and Function Compatible with Other Standard Logic Families Chip Complexity: FETs = 54 Pb−Free Packages are Available |
| 描述与应用 | 单路2输入 异或门;特性 高速：TPD =3.5纳秒（典型值）@ VCC = 5 V 低功耗：ICC=1uA（最大）@ TA= 25°C 掉电保护的输入端 平衡传输延时 引脚和功能兼容与其他标准逻辑系列 芯片的复杂度：晶体管数= 54 提供无铅封装 |
