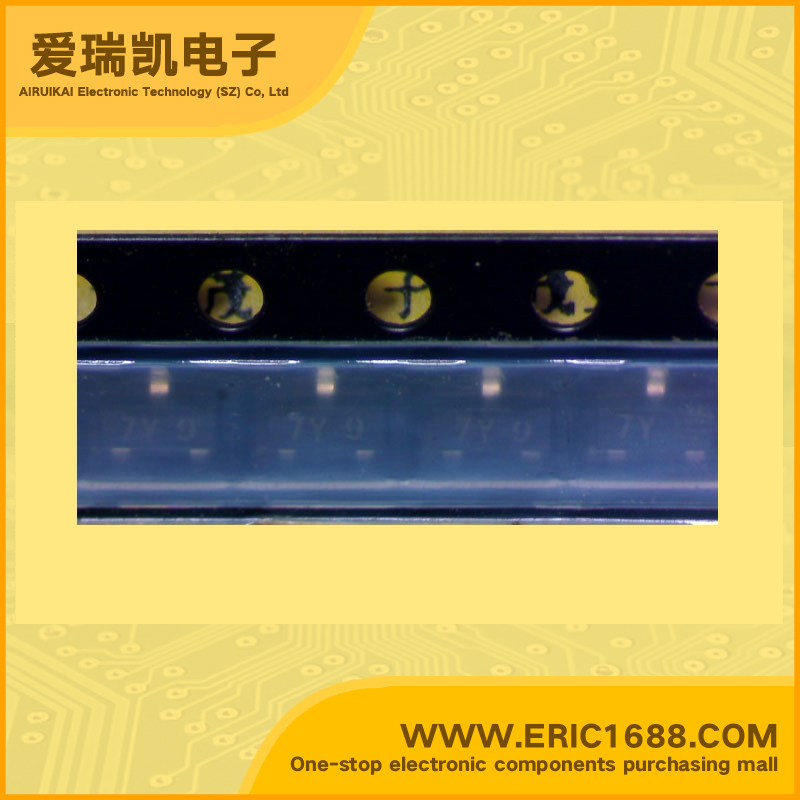

MMBR941LT1 NPN三极管 20V 50mA 8Ghz 50~100 SOT-23/SC-59 marking/标记 7Y 低噪声高频三极管
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 8Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 50~100 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | The RF Line NPN Silicon Low Noise High-Frequency TRANSISTOR features excellent broadband linearity and is offered in a variety of packages. • Fully Implanted Base and Emitter Structure • 9 Finger, 1.25 Micron Geometry with Gold Top Metal • Gold Sintered Back Metal • Available in tape and reel packaging options: T1 suffix = 3,000 units per reel T3 suffix = 10,000 units per reel |
| 描述与应用 | RF线NPN硅 低噪声高频三极管 具有良好的宽带线性，并提供多种封装。 •完全植入基极和发射极结构 •9个手指，1.25微米几何与黄金顶部的金属 •黄金背面金属烧结 •可在磁带和卷轴包装选择： T1后缀=3000单位每卷 T3后缀=10,000单位每卷 |
| 规格书PDF |
