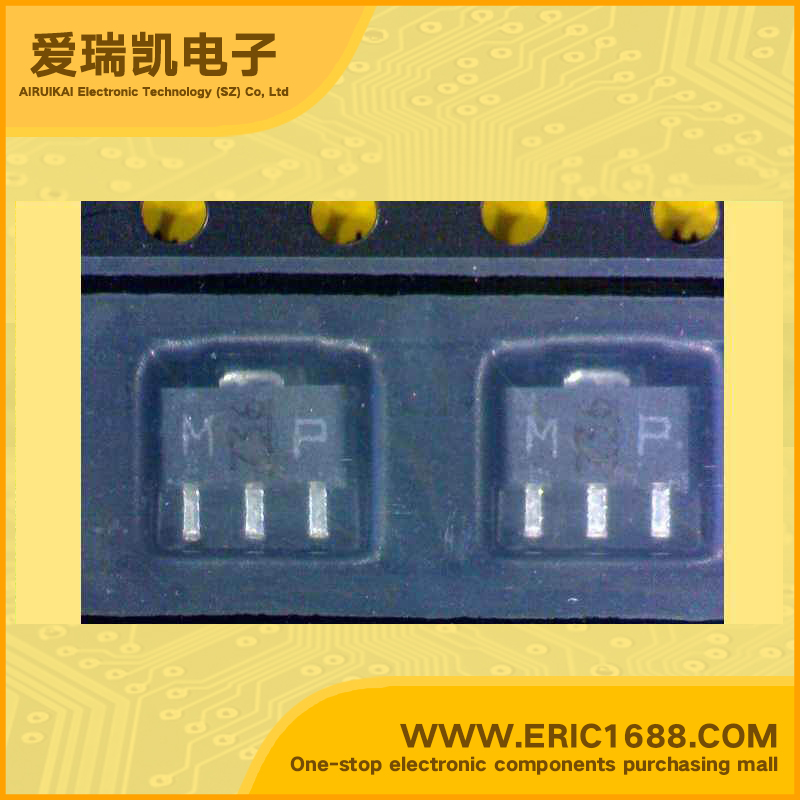

MT3S150P NPN三极管 10V 90mA 13GHz~17GHz 100~200 SOT-89/PW-Mini marking/标记 MP VHF-UHF低噪声，低失真放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 10V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 8V |
| 集电极连续输出电流ICCollector Current(IC) | 90mA |
| 截止频率fTTranstion Frequency(fT) | 13GHz~17GHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~200 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | VHF-UHF Low-Noise, Low-Distortion Amplifier Application Low Noise Figure: NF=0.95dB (@f=1 GHz) • High Gain: |S21e| 2 =11.5dB (@f=1 GHz) |
| 描述与应用 | VHF-UHF低噪声，低失真放大器的应用 低噪声系数：NF=0.95分贝（F =1千兆赫） •高增益：S21E| 2 =11.5分贝（@频率= 1 GHz）的 |
| 规格书PDF |
