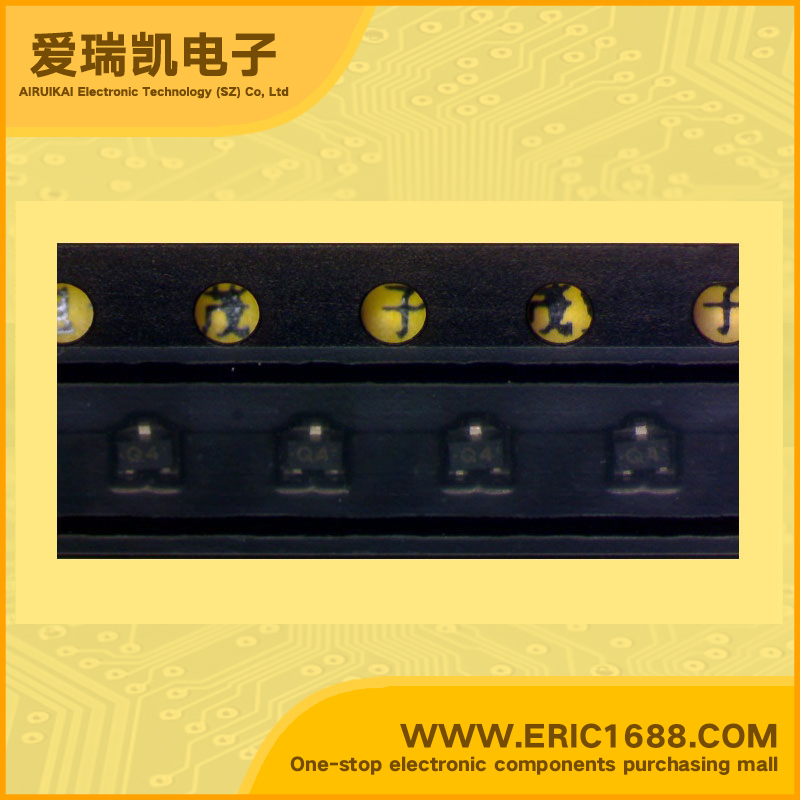

MT3S37T NPN三极管 8V 50mA 15Ghz~19GHz SOT-623/TESM marking/标记 Q4 UHF低噪声放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 8V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 4.5V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 15Ghz~19GHz |
| 直流电流增益hFEDC Current Gain(hFE) | |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | VCO Oscillator Stage UHF Low-Noise Amplifier Application Low Noise Figure :NF=1.2dB (@f=2GHz) • High Gain:|S21e| 2 =12.0dB (@f=2GHz) |
| 描述与应用 | VCO振荡器阶段 UHF低噪声放大器的应用 低噪声系数：NF=1.2分贝（@ F =2GHz的） •高增益：S21E| 2 =12.0分贝（F =2GHz的） |
| 规格书PDF |
