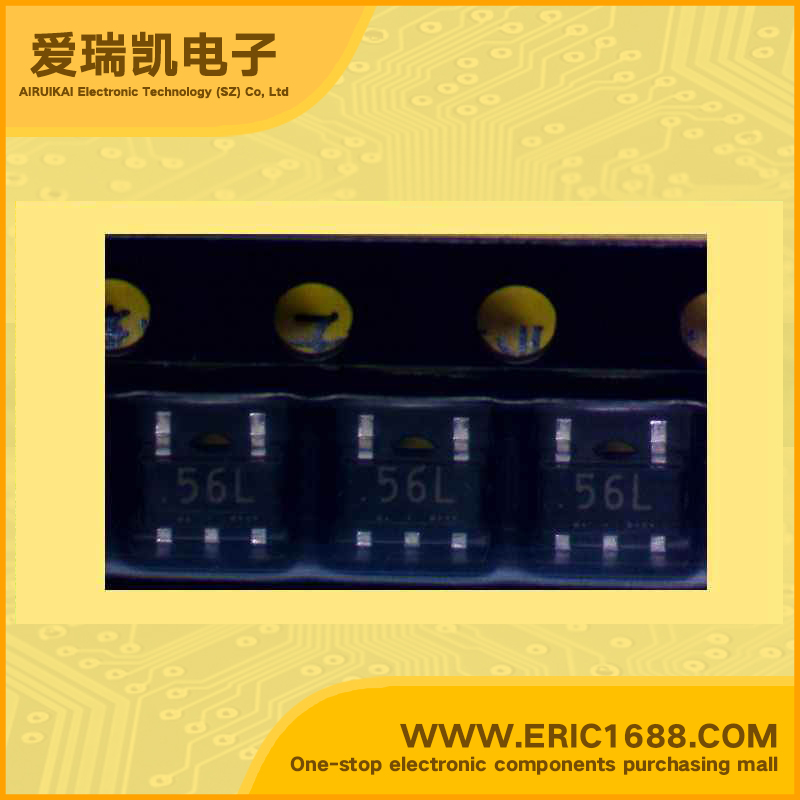

NNCD5.6LG 瞬态抑制二极管TVS/ESD 0.2W/200mW SOT153-5.6V 标记56L
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | |
| 反向击穿电压VBRBreakdown Voltage | 5.6V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 2W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • E.S.D NOISE CLIPPING DIODES • LOW CAPACITANCE TYPE ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES(QUARTO TYPE: COMMON ANODE)5-PIN MINI MOLD • Based on the electrostatic discharge immunity test (IEC1000-4-2), the product assures the minimum endurance of 8 kV. • Capacitance is small with 10 pF (at VR = 0 V, f = 1 MHz)between the terminal. It is excellent in the frequency characteristic. • With 4 elements mounted (common anode) in the 5-pin super mini mold package, that product can cope with more highdensity assembling. APPLICATIONS • External interface circuit ESD absorption in the high-speed data communication bus such as USB |
| 描述与应用 | 特点 •E.S.D噪音限幅二极管 •低电容静电放电噪声限幅二极管（QUARTO类型：共阳极）5针迷你模具 •基于静电放电抗扰度试验（IEC61000-4-2），产品保证8千伏的最低耐力。 •小电容与10 pF（在VR =0 V，F =1兆赫）之间的终端。它具有优异的频率特性。 •使用4个元素在5-pin超级安装（共阳极）小型模具包，该产品可以应付更多高密度组装。 应用 •外部接口电路的ESD吸收高速数据通信总线，如USB |
