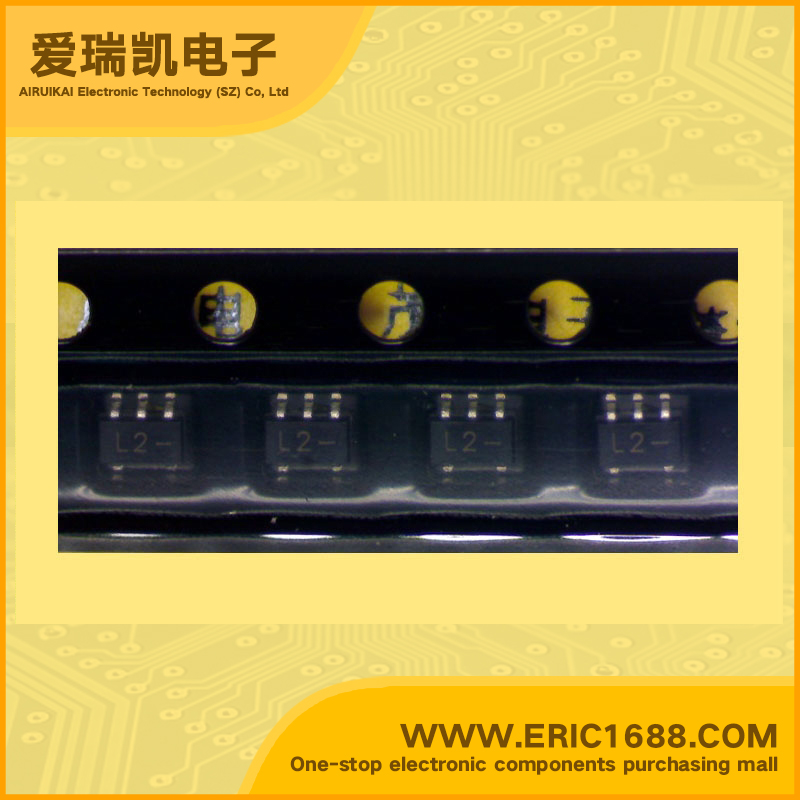

PESD5V0L4UG 瞬态抑制二极管TVS/ESD 5V 2.5A SOT-353/SC-88A 标记L2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6.46V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 30W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 2.5A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Features •Low capacitance unidirectional quadruple ESD protection diode arrays •ESD protection of up to four lines •Ultra low leakage current: IRM = 5 nA •Low diode capacitance •ESD protection up to 20 kV •Max. peak pulse power: Ppp = 30 W •IEC 61000-4-2; level 4 (ESD) •Low clamping voltage: Vcl= 12 V •IEC 61000-4-5 (surge); Ipp = 2.5 A |
| 描述与应用 | 特性 •单向四低电容ESD保护二极管阵列 •多达四线ESD保护 •超低漏电流：IRM= 5 nA •低电容二极管 •高达20 kVESD保护 •最大峰值脉冲功率：Ppp=30 W •IEC61000-4-2第4级（ESD） •低钳位电压：VCL= 12 V •IEC61000-4-5（浪涌），Ipp=2.5 A |
| 规格书PDF |
