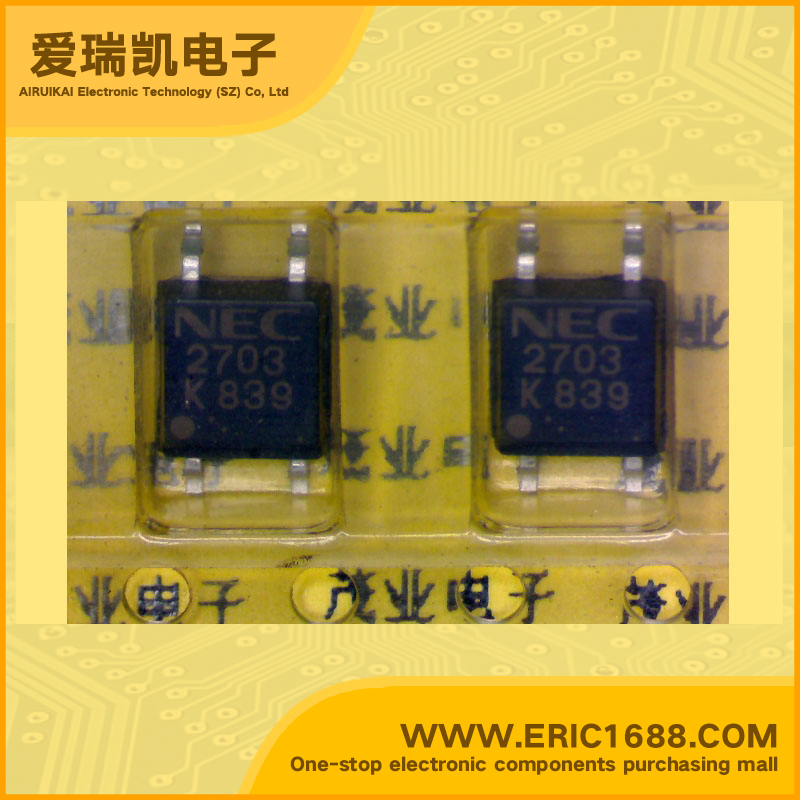

光电耦合器 晶体管，光电输出 PS2703-1-E3 SOP4 marking/标记 2703
| 通道数Number of Channels | 1 |
| 输入类型Input Type | DC |
| 电压 - 隔离Voltage - Isolation | 3750Vrms |
| 电流传输比（最小值）Current Transfer Ratio (Min) | 10% @ 1mA |
| 电流传输比（最大值）Current Transfer Ratio (Max) | 400% @ 5mA |
| 电压 - 输出Voltage - Output | 120V |
| 电流 - 输出/通道Current - Output / Channel | 30mA |
| 电流 - DC 正向 (If)Current - DC Forward (If) | 50mA |
| Vce 饱和值（最大值）Vce Saturation (Max) | 0.3V |
| 输出类型Output Type | 晶体管 Transistor |
| Description & Applications | Features • PHOTOCOUPLER • HIGH ISOLATION VOLTAGE HIGH COLLECTOR TO EMITTER VOLTAGE TYPE SOP MULTI PHOTOCOUPLER • High isolation voltage (BV = 3 750 Vr.m.s.) • High collector to emitter voltage (VCEO = 120 V) • SOP (Small Outline Package) type • Each isolated channel per package • High-speed switching (tr, tf = 10 µs TYP.) • Taping product number (Only-1 type): PS2703-1-E3, E4, F3, F4 • UL approved: File No. E72422 (S) • VDE0884 approved (Option) APPLICATIONS • Hibrid IC • Telephone/FAX • FA/OA equipment • Programmable logic controllers • Power supply |
| 描述与应用 | 特点 •光耦合器 •高隔离电压高集电极到发射极电压型SOP的多光耦合器 •高隔离电压（BV=750 Vr.m.s.） •高集电极到发射极电压（VCEO=120 V） •SOP（小外形封装）型 •每包每个隔离通道 •高速开关（TR，TF=10μs的TYP。） •大坪产品编号：PS2703-1-E3，E4，F3，F4（只有-1型） •UL批准：文件编号E72422（S） •VDE0884批准（选配） 应用 •Hibrid集成电路 •电话/传真 •FA/ OA设备 •可编程逻辑控制器 •电源 |
| 规格书PDF |
