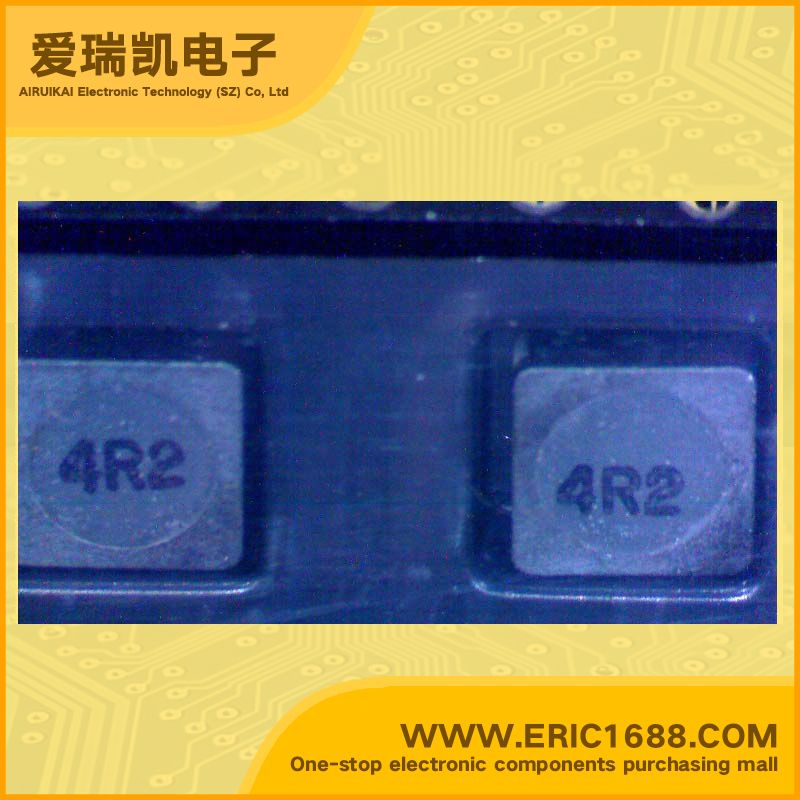

功率电感 SH50284R2YSB 4.2uH 5M-4R2
| Q值Q Value | |
| 电感值Inductance | 4.2uH |
| 误差Tolerance | ±30% |
| 额定电流Current Rating | 2500mA |
| 饱和电流Current - Saturation | 2000mA |
| DC电阻DCRDC Resistance (DCR) | 0.035Ω/Ohm |
| Description & Applications | MATERIALS： a﹒Core ：FerriteDR core b﹒Core：Ferrite RI core c﹒Wire ：Enamelled copper wire ( Class F & H) d﹒Adhesive ：Epoxy resin e﹒Terminal：Ag/Ni/Sn f﹒Remark：Products comply with RoHS' requirements GENERAL SPECIFICATION： c﹒Operating temp.：-40℃----+105℃ b﹒Storage temp.：-40℃----+125℃ a﹒Temp. rise ：30℃max. d﹒Resistance to solder heat：260℃.10 secs. |
| 描述与应用 | MATERIALS： a﹒Core ：FerriteDR core b﹒Core：Ferrite RI core c﹒Wire ：Enamelled copper wire ( Class F & H) d﹒Adhesive ：Epoxy resin e﹒Terminal：Ag/Ni/Sn f﹒Remark：Products comply with RoHS' requirements GENERAL SPECIFICATION： c﹒Operating temp.：-40℃----+105℃ b﹒Storage temp.：-40℃----+125℃ a﹒Temp. rise ：30℃max. d﹒Resistance to solder heat：260℃.10 secs. |
| 规格书PDF |
