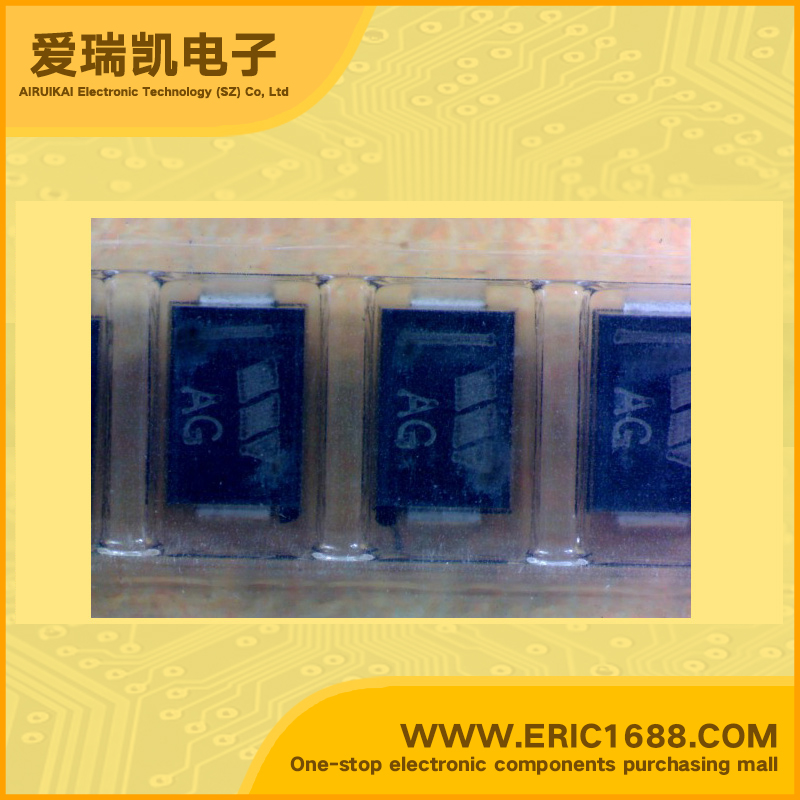

SMBJ6.0A 瞬态抑制二极管TVS/ESD 6.0V 58.3A DO-214AC/SMA-6V 标记AG

价格(不含运费):
起批量(PCS):
¥0.700
≤99
¥0.630
≤199
¥0.525
≤499
¥0.455
≤999
¥0.420
整包

热销商品

产品描述
极性Polarization单向 Unidirectional
反向关断电压/工作电压VRWMReverse Standoff Voltage6.0V
反向击穿电压VBRBreakdown Voltage7.02V
峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation600W
峰值脉冲电流IPPmPeak Forward Surge Current58.3A
额定耗散功率PdPower dissipation
Description & ApplicationsFeatures •SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR •Plastic package has Underwriters Laboratory Flammability Classification 94V-0 •For surface mounted applications in order to optimize board space •Low profile package •Built-in strain relief •Glass passivated junction •Low incremental surge resistance •600W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01% •Excellent clamping capability •Fast response time: typically less than 1.0ps from 0 volts to V(BR) for unidirectional and 5.0ns for bidirectional types •For devices with V(BR)≥10V, ID are typically less than 1.0µA •High temperature soldering guaranteed: 250°C/10 seconds at terminals
描述与应用特点 •表面贴装瞬态电压抑制器 •塑料包装有保险商实验室可燃性分类94V-0 •对于表面安装的应用程序,以优化电路板空间 •薄型包装 •内置应变救灾 •玻璃钝化结 •低增量浪涌电阻 •600W峰值脉冲功率能力与10/1000μS波形,重复率(占空比):0.01% •出色的钳位能力 •快速响应时间:通常小于1.0PS从0伏V(BR)单向和双向类型5.0ns •对于设备与V(BR)≥10V,ID通常小于1.0μA •高温焊接保证:250°C/10秒钟码头
规格书PDF
