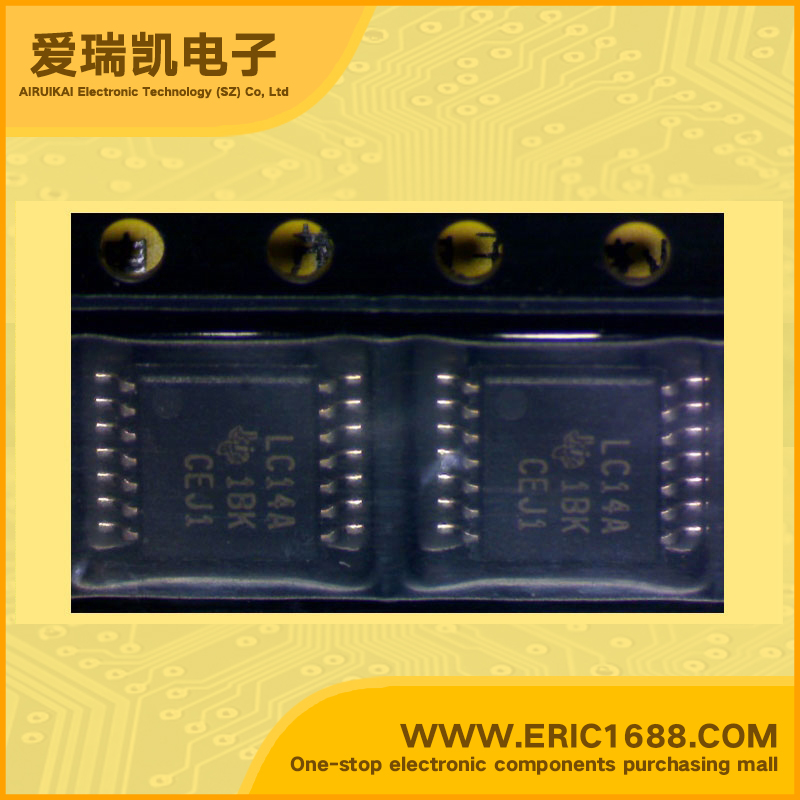

集成电路IC 反相施密特触发器 SN74LVC14APW TSSOP14 marking/标记 LC14A

热销商品

产品描述
逻辑类型Logic Type反相施密特触发器 Inverting Schmitt trigger
电路数Number of Circuits1
输入数Number of Inputs1
电源电压VccVoltage - Supply-0.5v~6.5v
静态电流IqCurrent - Quiescent (Max)10uA
输出高,低电平电流Current - Output High, Low-24mA,24mA
低逻辑电平Logic Level - Low0.55v
高逻辑电平Logic Level - High2.4v
传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL6.2ns @ 3.3V,50pF
Description & ApplicationsHEX SCHMITT-TRIGGER INVERTERS ; Operate From 1.65 V to 3.6 V • ESD Protection Exceeds JESD 22 • Specified From –40°C to 85°C, – 2000-V Human-Body Model (A114-A) –40°C to 125°C, and –55°C to 125°C – 200-V Machine Model (A115-A) • Inputs Accept Voltages to 5.5 V – 1000-V Charged-Device Model (C101) • Max tpd of 6.4 ns at 3.3 V • Typical VOLP (Output Ground Bounce)< 0.8 V at VCC = 3.3 V, TA = 25°C • Typical VOHV (Output VOH Undershoot)> 2 V at VCC = 3.3 V, TA = 25°C • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
描述与应用十六进制施密特触发器逆变器; 操作从1.65 V至3.6 V•ESD保护超过JESD22 •指定从-40°C到85°C, - 2000-V人体模型(A114-A) -40°C至125°C和-55°C至125°C - 200-V机型号(A115-A) •接受输入电压为5.5 V - 1000-V带电器件模型(C101) •最大TPD3.3 V时为6.4 ns •典型的VoIP(输出地弹跳)<0.8 V在VCC =3.3 V,TA= 25°C •典型VOHV(输出VOH冲)>2 V在VCC =3.3 V,TA= 25°C •闭锁性能超过100 mA每 JESD 78,II类
规格书PDF
