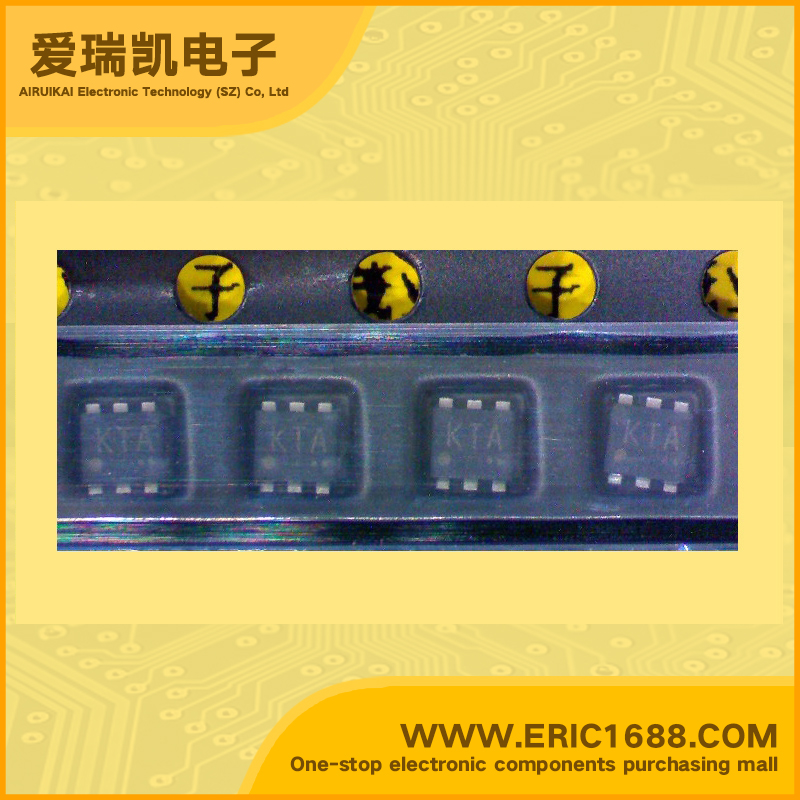

SSM6E01TU 复合场效应管 -12V/20V -10A/50mA SOT-363/SC70-6/UF6 marking/标记 KTA 负载开关
| 最大源漏极电压VdsDrain-Source Voltage | -12V/20V |
| 最大栅源极电压Vgs(±)Gate-Source Voltage | 12V/10V |
| 最大漏极电流IdDrain Current | -10A/50mA |
| 源漏极导通电阻RdsDrain-Source On-State Resistance | 240mΩ@ VGS = -2.5V, ID = -500mA /1Ω@ VGS = 2.5V, ID = 10mA |
| 开启电压Vgs（th）Gate-Source Threshold Voltage | -0.4~-1.1V/0.7~1.3V |
| 耗散功率PdPower Dissipation | 500mW/0.5W |
| Description & Applications | TOSHIBA Multi-Chip Device Silicon P-Channel MOS Type (U-MOS II) + N-Channel MOS Type (Planer) Load Switch Applications P-channel MOSFET and N-channel MOSFET incorporated into one package. Low power dissipation due to P-channel MOSFET that features low RDS (ON) and low-voltage operation |
| 描述与应用 | TOSHIBA多芯片设备 硅P沟道MOS类型（U-MOS II）+ N沟道MOS类型（平面） 负载开关应用中 P沟道MOSFET和N沟道MOSFET的纳入一包装。 低功耗由于P沟道MOSFET，具有低RDS（ON）和低电压操作 |
| 规格书PDF |
