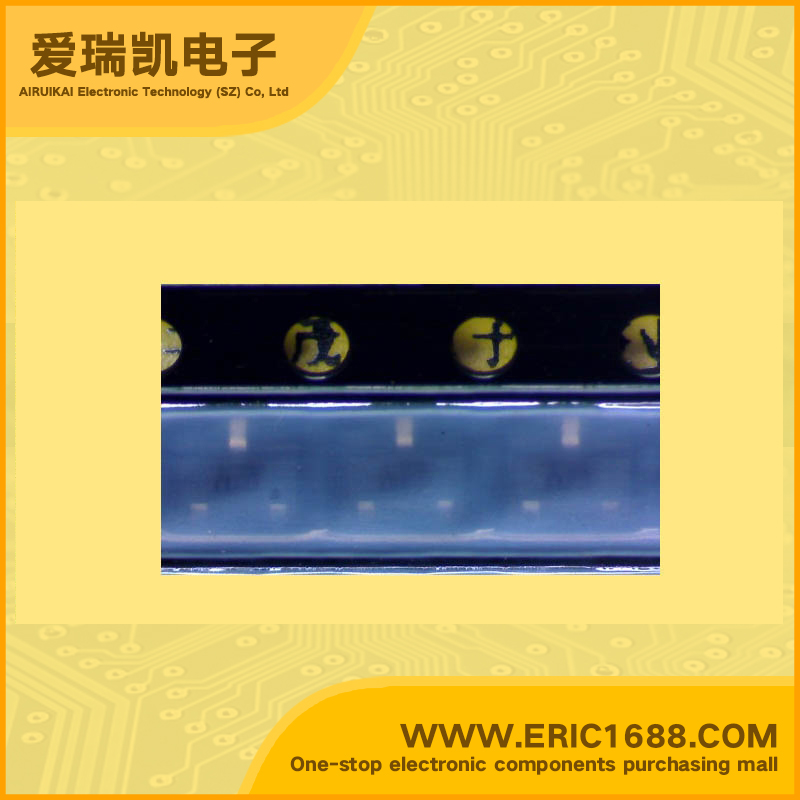

STN2907AS PNP三极管 -60V -600mA/- 0.6A 250MHz 75 -400mV/-0.4V SOT-23/SC-59 marking/标记 WA 低集电极饱和电压/开关
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | −600mA/- 0.6A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 75 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -400mV/-0.4V |
| 耗散功率PcPoWer Dissipation | 350mW/0.35W |
| Description & Applications | PNP Silicon Transistor Descriptions • General purpose application • Switching application Features • Large collector current • Low collector saturation voltage • Complementary pair with STN2222AS |
| 描述与应用 | PNP硅晶体管 简述 •通用应用 •开关应用 特点 •大集电极电流 •低集电极饱和电压 •STN2222AS互补配对 |
| 规格书PDF |
