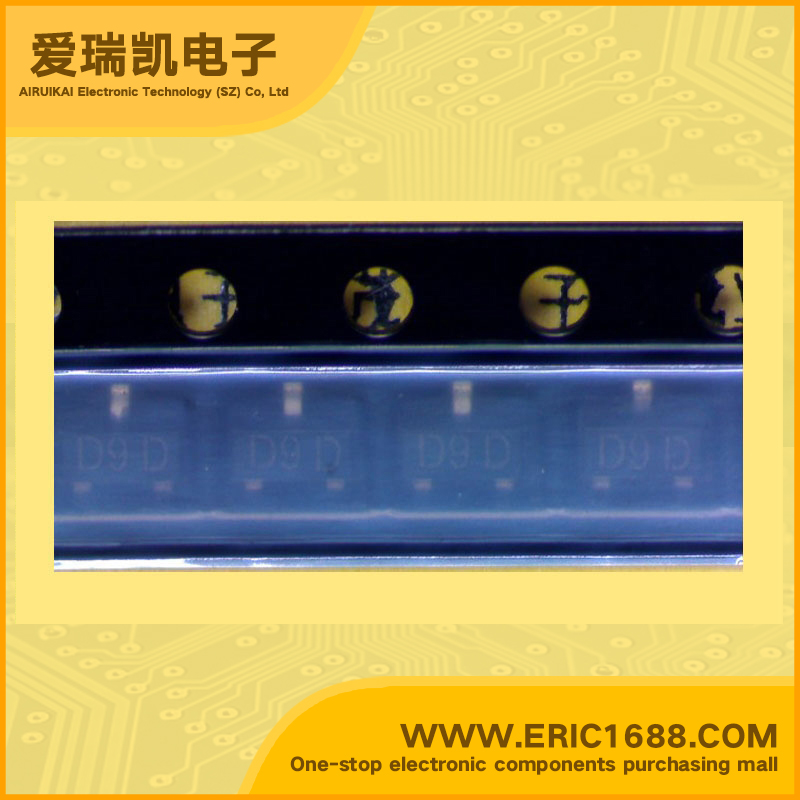

UTC8050SECB NPN三极管 30V 700mA/0.7A 100MHz 110 500mV/0.5V SOT-23/SC-59 marking/标记 D9D 低电压大电流
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 20V |
| 集电极连续输出电流ICCollector Current(IC) | 700mA/0.7A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 110 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 500mV/0.5V |
| 耗散功率PcPower Dissipation | 1W |
| Description & Applications | LOW VOLTAGE HIGH CURRENT SMALL SIGNAL NPN TRANSISTOR *Collector current up to 700mA *Collector-Emitter voltage up to 20 V *Complementary to UTC 8550S |
| 描述与应用 | 低电压大电流 小信号NPN 晶体管 *集电极电流高达700mA *集电极 - 发射极电压高达20 V |
| 规格书PDF |
