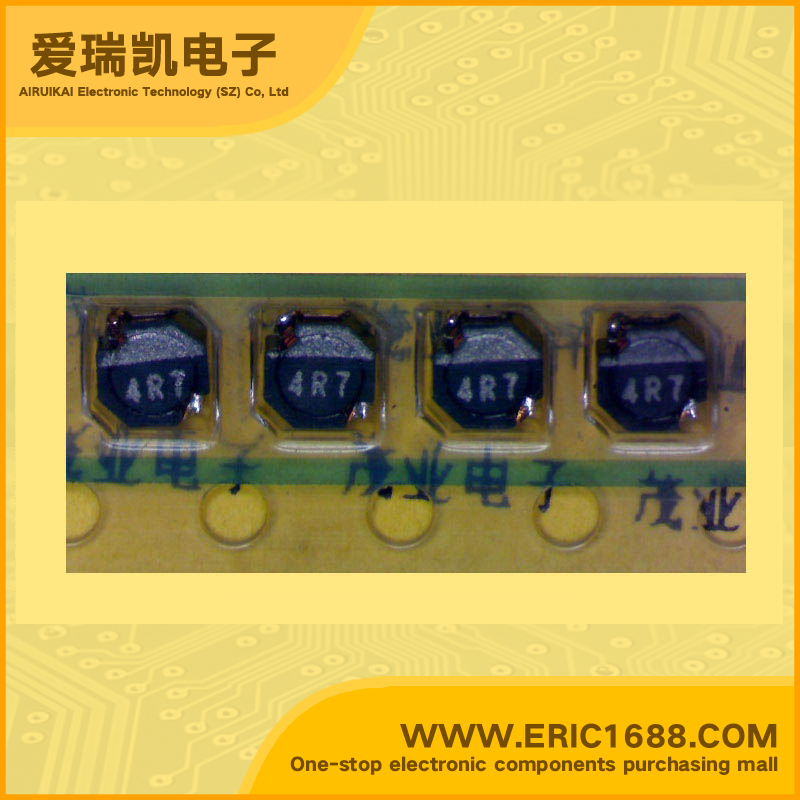

功率电感 VLF3014AT-4R7MR90 4.7uH 3M-4R7M 0.9A
Q值Q Value | |
电感值Inductance | 4.7uH |
误差Tolerance | ±20% |
额定电流Current Rating | 900mA |
饱和电流Current - Saturation | |
DC电阻DCRDC Resistance (DCR) | 0.17Ω/Ohm |
Description & Applications | FEATURES • Mount area: 2.6*2.8mm Low profile: 1.4mm max. height • Generic use for portable DC to DC converter line. • High magnetic shield construction should actualize high resolution for EMC protection. • Available for automatic mounting in tape and real package. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. APPLICATIONS Power souce inductor for mobile devices such as mobile phones, HDDs, and DSCs |
描述与应用 | 特点: •安装面积:2.6*2.8毫米 低姿态:最大为1.4mm。高度 •通用使用便携式DC-DC转换线。 •高磁屏蔽结构,分辨率高 EMC保护。 •可在磁带和真正的包进行自动安装。 •该产品不含有铅和支持无铅 焊接。 •它是一个产品,符合RoHS指令。 应用: 烃源功率电感器为移动设备,如移动电话, 硬盘驱动器,数码相机 |
规格书PDF |
