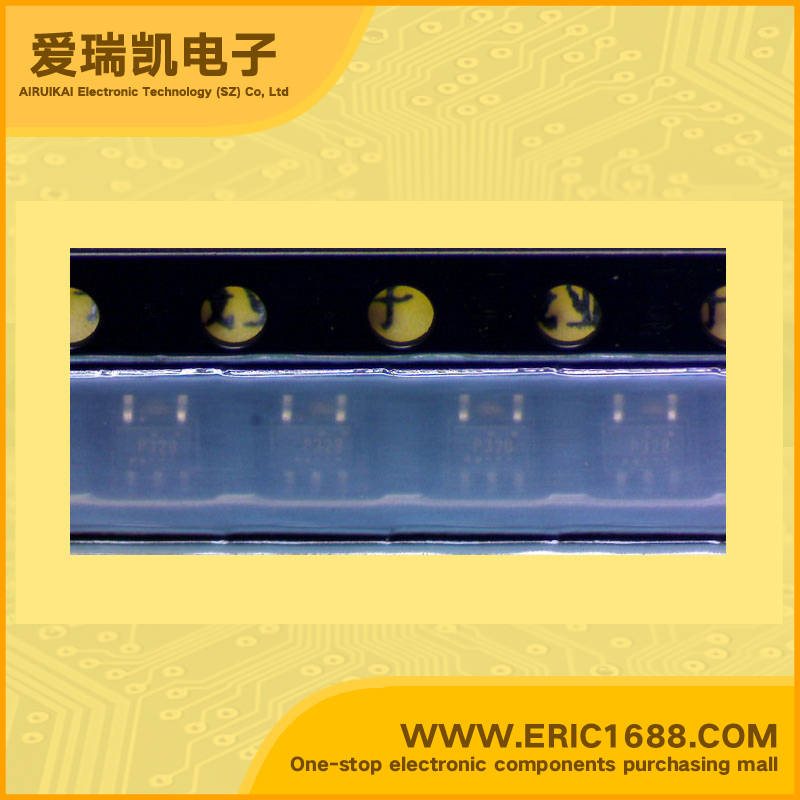

集成电路IC 或门 NC7SP32P5X SOT-353/SC70-5/SC-88A marking/标记 p32
| 逻辑类型Logic Type | 或门 OR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 0.9V~3.6V |
| 静态电流IqCurrent - Quiescent (Max) | 0.9uA |
| 输出高，低电平电流Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平Logic Level - Low | 0.7V~0.9V |
| 高逻辑电平Logic Level - High | 1.6V~2.1V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7ns @ 3V~3.6V，30pF |
| Description & Applications | ULP 2-Input OR Gate ；Features TinyLogic ULP 2-Input OR Gate 0.9V to 3.6V VCC supply operation 3.6V overvoltage tolerant I/O’s @ VCC from 0.9V to 3.6V Power-Off high impedance inputs and outputs Uses patented Quiet Series noise/EMI reduction circuitry Ultra small MicroPak leadfree package Ultra low dynamic power |
| 描述与应用 | ULP2输入或门;特性 TinyLogicULP2输入或门 0.9V至3.6VVCC电源工作 3.6V过压容限I / O@ VCC从0.9V到3.6V 电源关闭高阻抗输入和输出 采用专利静音系列噪声/ EMI抑制电路 超小型的MicroPak无铅封装 动态功耗超低 |
| 规格书PDF |
