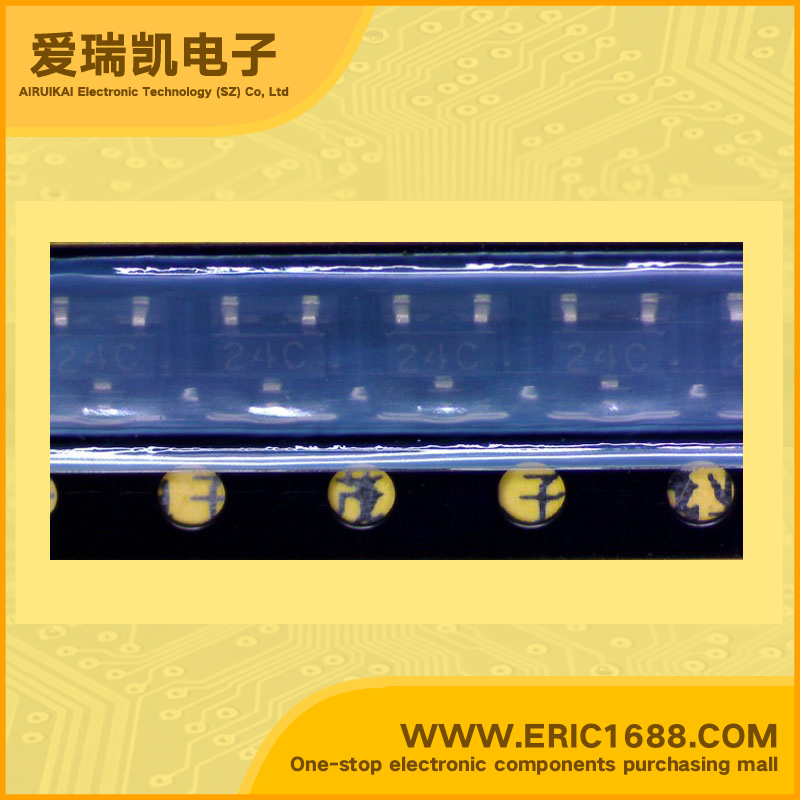

ZRA245F01 电压基准电源IC 2.45V SOT-23 marking/标记 24C 精密2.45伏电压参考
| 参考类型Reference Type | 旁路，精度 Shunt, Precision |
| 输出电压VoVoltage - Output | 2.45V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 50ppm/°C |
| 输入电压Voltage - Input | |
| 阴极电流Current - Cathode | 2mA |
| 输出电流IOUTCurrent - Output | 120mA/0.12A |
| Description & Applications | FEATURES • PRECISION 2.45 VOLT VOLTAGE REFERENCE • Small outline SOT23, SO8 and TO92 style package • No stabilising capacitor required • Typical TC 15ppm/°C • Typical slope resistance 0.26Ω • ± 3% , 2% and 1% tolerance • Industrial temperature range • Operating current 2mA to 120mA APPLICATIONS • Battery powered and portable equipment. • Metering and measurement systems. • Instrumentation. • Test equipment. • Data acquisition systems. • Precision power supplies. |
| 描述与应用 | 特点 •精密2.45伏电压参考 •小外形SOT23，SO8和TO92风格包 •无稳定电容 •典型TC15PPM/°C •典型斜率电阻0.26Ω •±3％，2％及1％的容差 •工业温度范围 •到120mA工作电流2mA 应用 •电池供电的便携式设备。 •计量和测量系统。 •仪表。 •测试设备。 •数据采集系统。 •精密电源。 |
| 规格书PDF |
