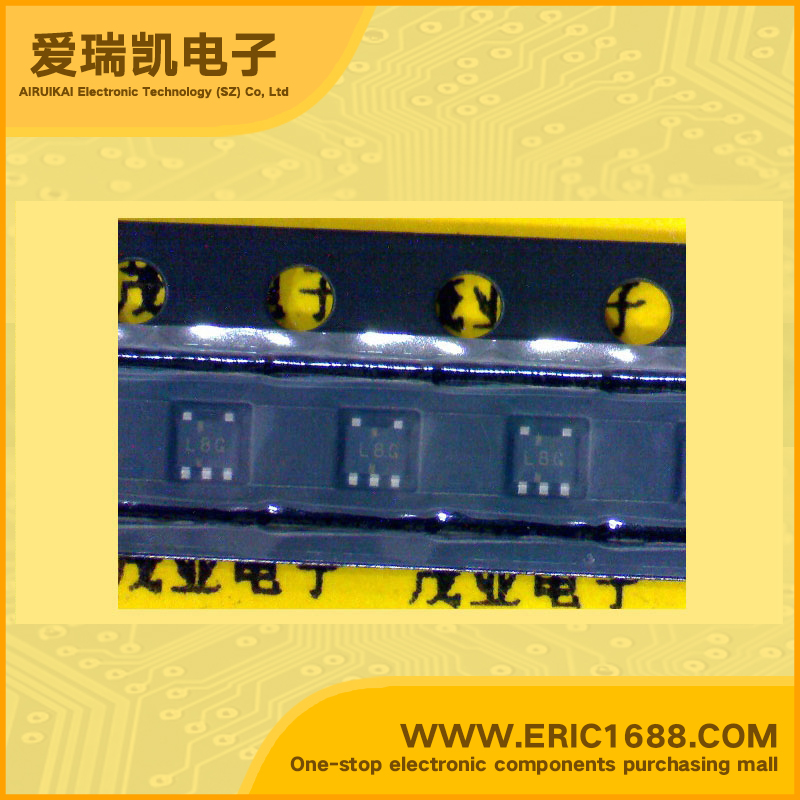

集成电路IC 异或门 HD74LV1G86AVSE SOT-553/VSON-5 marking/标记 L8G
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 10uA |
| 输出高，低电平电流Current - Output High, Low | -12mA，12mA |
| 低逻辑电平Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平Logic Level - High | 1.4V~3.8V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 6.3ns @ 5V，50pF |
| Description & Applications | 2–input Exclusive–OR Gate ；Features The basic gate function is lined up as Renesas uni logic series Supplied on emboss taping for high-speed automatic mounting Electrical characteristics equivalent to the HD74LV86A Supply voltage range : 1.65 to 5.5 V Operating temperature range : –40 to +85°C All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max.) = 5.5 V (@VCC = 0 V) Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V) All the logical input has hysteresis voltage for the slow transition |
| 描述与应用 | 双输入异或门;特性 基本门功能一字排开瑞萨单向逻辑系列 提供压纹高速自动安装盘带 电气特性相当于HD74LV86A 电源电压范围：1.65至5.5 V 工作温度范围：-40至+85°C 所有输入VIH（最大）=5.5 V（@VCC= 0 V至5.5 V） 所有输出VO（最大）=5.5 V（@VCC=0 V） 输出电流±6毫安（@VCC= 3.0 V到3.6 V），±12毫安（@VCC= 4.5 V至5.5 V） 所有的逻辑输入具有滞后电压的缓慢过渡 |
