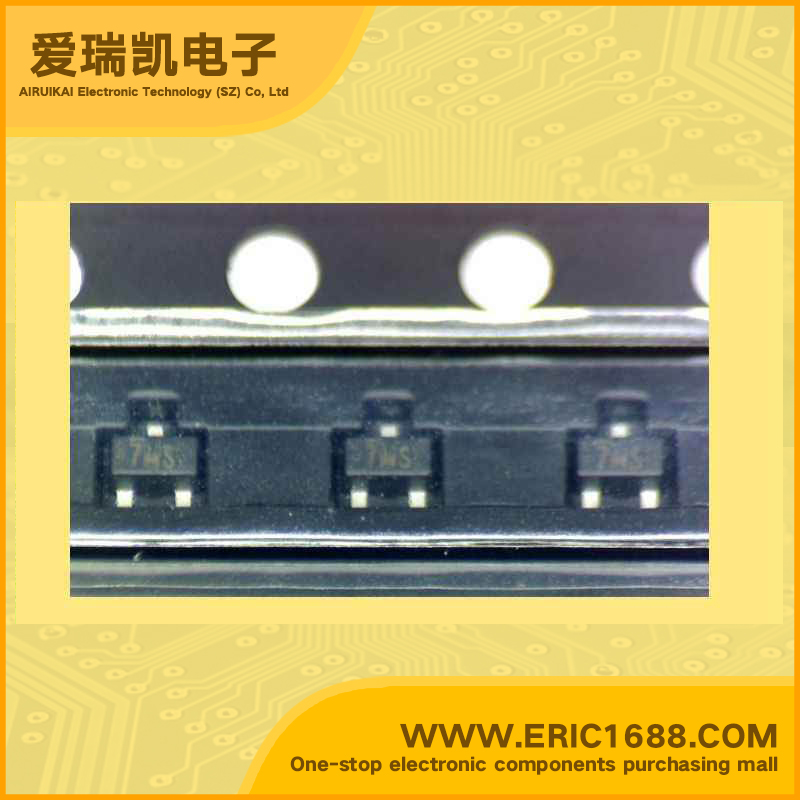

2SC6054GSL NPN三极管 60V 100mA/0.1A 100MHz 100mV/0.1V SOT-523/SC-75 marking/标记 7MS 通用放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 100mA/0.1A |
| 截止频率fTTranstion Frequency(fT) | 100MHz |
| 直流电流增益hFEDC Current Gain(hFE) | |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 100mV/0.1V |
| 耗散功率PcPower Dissipation | 125mW/0.125W |
| Description & Applications | Silicon NPN epitaxial planar type For general amplification * Features * High forward current transfer ratio hFE * SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing. |
| 描述与应用 | NPN硅外延平面型 对于一般的放大 *特点 *高正向电流传输比HFE * SS-迷你型包装，使设备和自动减员 通过插入磁带包装。 |
| 规格书PDF |
