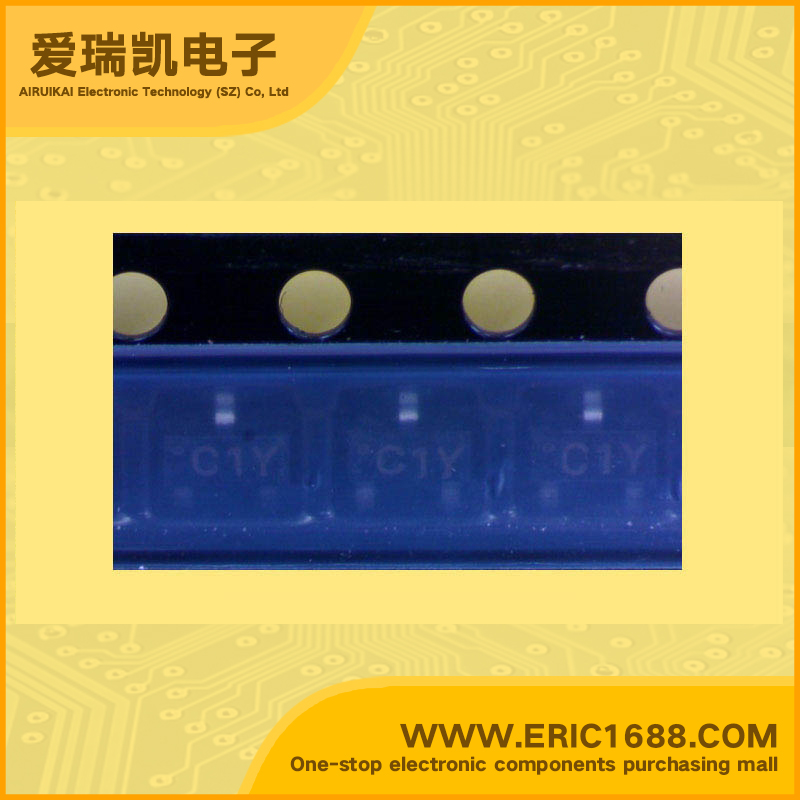

KSC1623-Y-MTF NPN三极管 60V 100mA/0.1A 250MHz 135~270 300mV/0.3V SOT-23/SC-59 marking/标记 C1Y 低频放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流ICCollector Current(IC) | 100mA/0.1A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 135~270 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 300mV/0.3V |
| 耗散功率PcPower Dissipation | 200mW/0.2W |
| Description & Applications | LOW FREQUENCY AMPLIFIER complement to KSA812 HIGH FREQUENCY OSC |
| 描述与应用 | 低频放大器 对管KSA812 高频振荡 |
| 规格书PDF |
