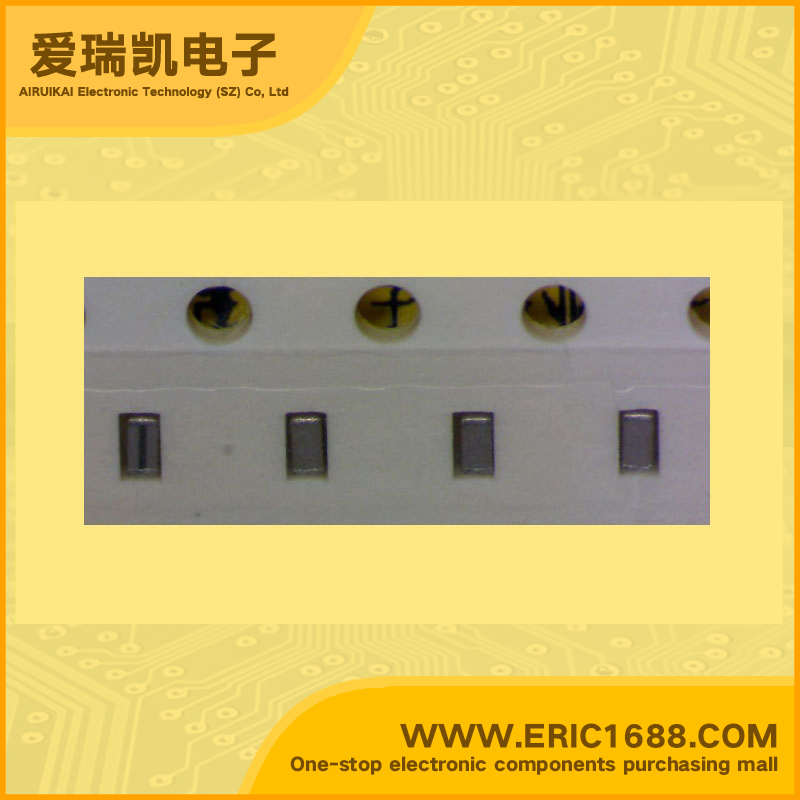

B72500D50H160 瞬态抑制二极管TVS/ESD 5.6V 30A SOD-523/0603-5.6VV 标记同CDS3C05HDML1
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5.6V |
| 反向击穿电压VBRBreakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 1000W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 30A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Reliable ESD protection of single lines；Features •ESD protection according to IEC 61000-4-2 (Level 4) •Endurance specification up to 3000 ESD pulses (IEC 61000-4-2 Level 4) •Suitable for uni- and bidirectional lines •Bidirectional ESD protection in a two-pin device •Routes all ESD events, both positive and negative, safely to ground •Suitable for DC working voltages up to 22 V •No derating of maximum ratings up to 85 °C •Surface mount package in 0603 case size •Extremely fast response time < 0.5 ns •Lead free nickel barrier terminations |
| 描述与应用 | 可靠的ESD单线路保护;特性 •ESD保护，符合IEC 61000-4-2（4级） •耐力规格3000 ESD脉冲（IEC61000-4-2第4级） •适用于单向和双向线 •两引脚的装置的双向ESD保护 •路由所有ESD事件，无论是正面和负面的，安全接地 •适用于直流工作电压高达22 V •无降至85°C的最大额定值 •在0603封装尺寸的表面贴装封装 •极快的响应时间<0.5ns •无铅镍挡板终端 |
| 规格书PDF |
