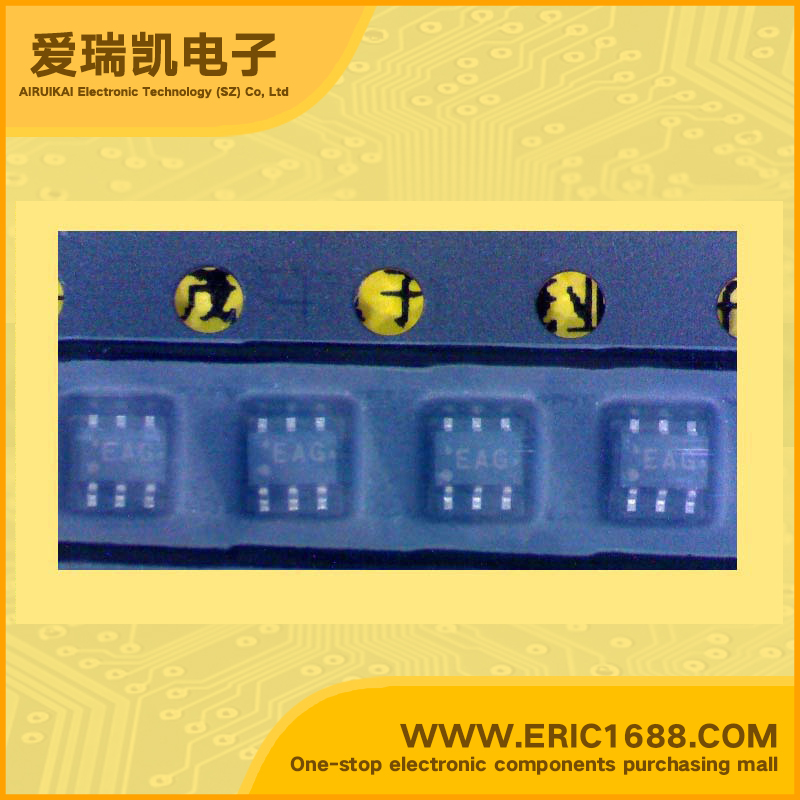

多路复用器/多路分解器 开关IC TC7PA53FU SOT-363 marking/标记 EAG
| 电路配置Circuit | 2 x 1:1 |
| 导通电阻On-State Resistance | 80 Ω/Ohm |
| 电源电压Voltage Supply Source | ±3 V ~ 18 V |
| Description & Applications | TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic 2-Channel Multiplexer/Demultiplexer Features Ultra-high speed operation: tpd = 0.4 ns (max) @VCC = 3.6 V, CL = 30 pF Ultra-low on resistance: RON = 21 Ω (max) @VCC = 3.6 V Operating voltage range: VCC (opr) = 1.8 to 3.6 V High latch-up immunity: Higher than or equal to 500 mA High ESD: Higher than or equal to ±200 V (JEITA) Higher than or equal to ±2000 V (MIL) Power-down protection provided on all input pins |
| 描述与应用 | 东芝CMOS数字集成电路硅单片 2通道多路复用器/多路解复用器 超高速操作：TPD =0.4纳秒（最大值）@ VCC=3.6 V， CL=30 pF的 超低电阻RON=21Ω（最大值）@ VCC=3.6 V 工作电压范围：VCC（OPR）=1.8至3.6 V 高抗闩锁能力：高于或等于500毫安 高ESD保护：高于或等于±200 V（JEITA） 高于或等于±2000 V（MIL） 所有的输入引脚上提供掉电保护 |
| 规格书PDF |
