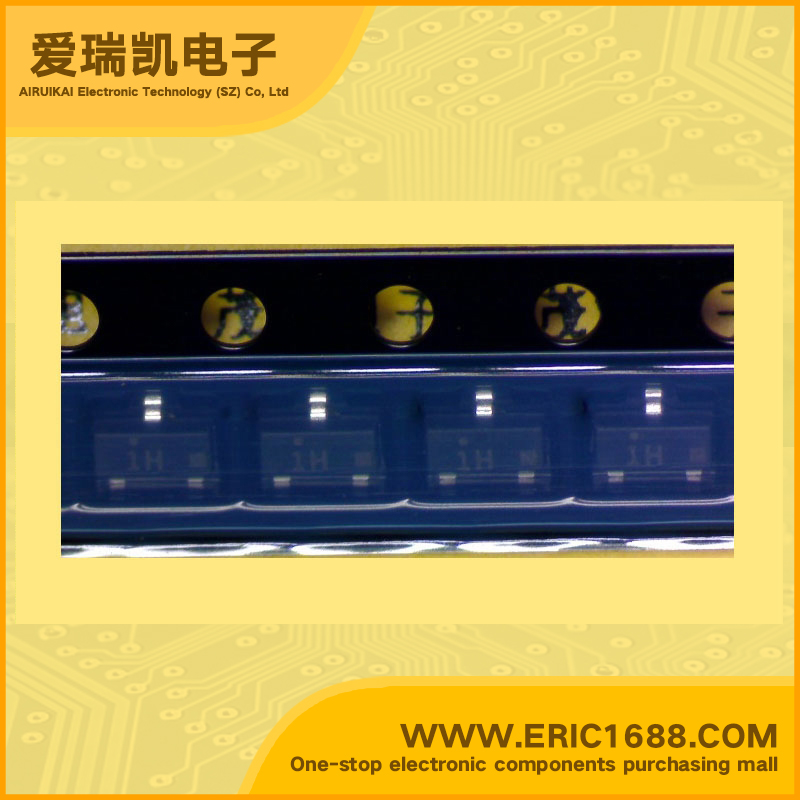

MMBTA05 NPN三极管 60V 500mA/0.5A 100Mhz 100 250mV/0.25V SOT-23/SC-59 marking/标记 1H 通用放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 60V |
| 集电极连续输出电流ICCollector Current(IC) | 500mA/0.5A |
| 截止频率fTTranstion Frequency(fT) | 100Mhz |
| 直流电流增益hFEDC Current Gain(hFE) | 100 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 250mV/0.25V |
| 耗散功率PcPower Dissipation | 350mW/0.35W |
| Description & Applications | This device is designed for general purpose amplifier applications at collector currents to 300mA. • Sourced from process 10. |
| 描述与应用 | 这个装置是专为通用放大器 应用在集电极电流300mA的电流。 |
