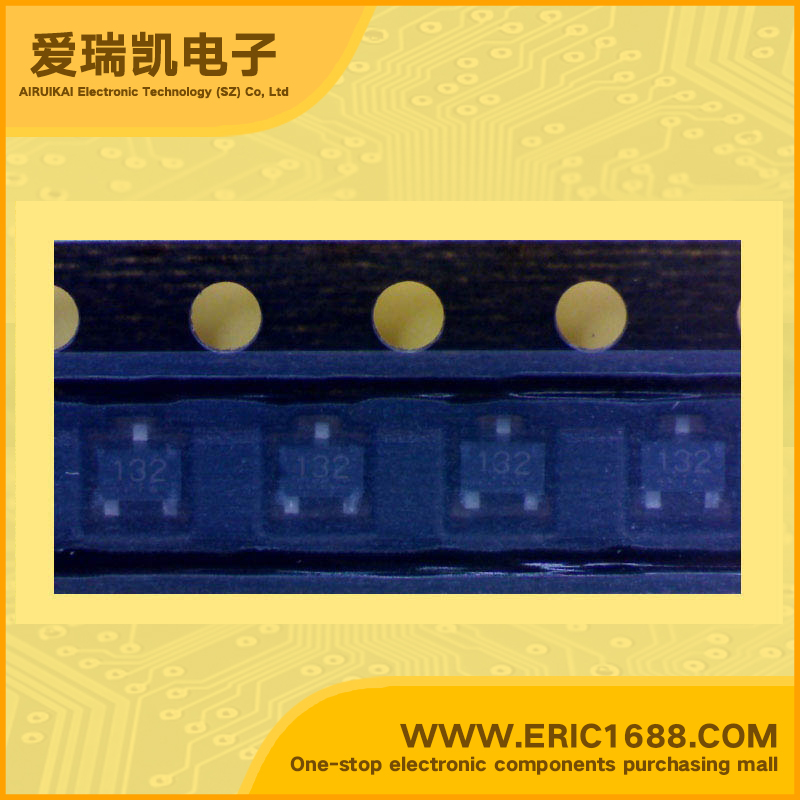

LTA123JUB PNP -50V -0.1A R1=2.2KΩ R2=47KΩ 代码 132
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) |
-50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) |
-50V |
| 集电极连续输出电流IC Collector Current(IC) |
-0.1A |
| 基极输入电阻R1 Input Resistance(R1) |
2.2kΩ |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) |
47kΩ |
| 电阻比(R2/R1) Resistance Ratio |
21 |
| 直流电流增益hFE DC Current Gain(hFE) |
|
| 截止频率fT Transtion Frequency(fT) |
250MHZ |
| 耗散功率Pc Power dissipation |
0.2W |
| 描述与应用 Description & Applications |
| 规格书PDF |
