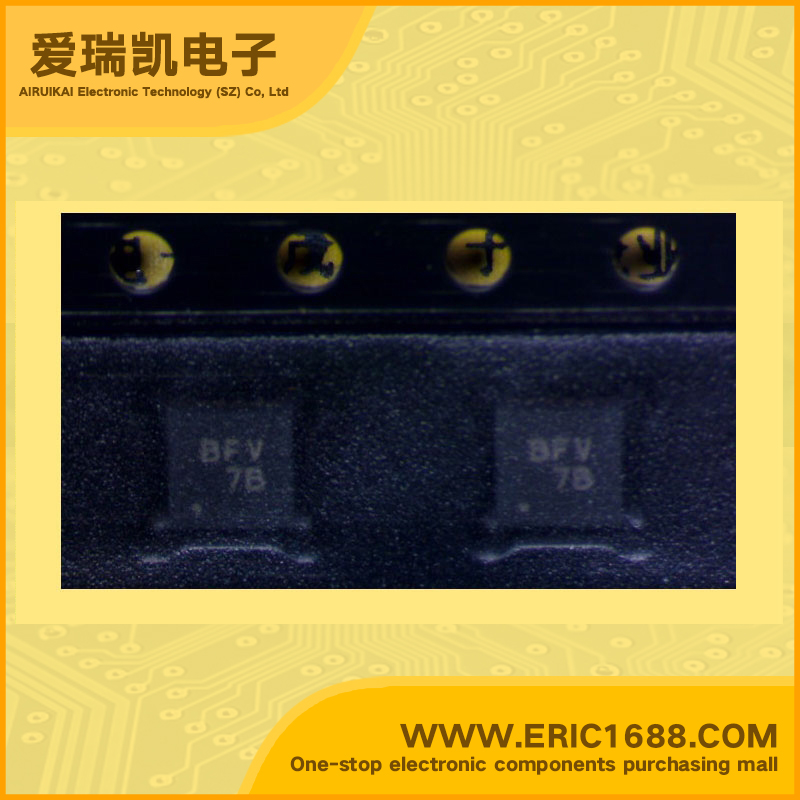

AAT4670IWP-T1 电源分配开关电源IC TDFN33-12 marking/标记 BFV7B 双输入，双输出负载开关
| 类型Type | 高端开关 high-side |
| 输出数Number of Outputs | 6 |
| Rds (On) | 105mΩ@3V |
| 内部开关Internal Switch(s) | 有 YES |
| 电流限制Current Limit | |
| 电压 - 输入Voltage - Input | 2.2V~5.5V |
| Description & Applications | •Dual-Input, Dual-Output Load Switch • 2.2V to 5.5V Input Voltage Range • 1A Current Limit Per Channel • 95mΩ Typical RDS(ON) • Fast Transient Response: — <1μs Response to Short Circuit • Low 18μA Quiescent Current • 1μA Max with Switches Off • Slew Rate Controlled • Thermal Shutdown • Fault Flags with 3ms Blanking • Under-Voltage Lockout • Temperature Range: -40°C to +85ºC • Hot Swap Supplies • Media • Notebook Computer • PDA • Peripheral Ports • USB Ports |
| 描述与应用 | •双输入，双输出负载开关 •2.2V至5.5V的输入电压范围 •每通道1A电流限制 •95mΩ典型RDS（ON） •快速瞬态响应： - <1μs响应短路 •低的18μA静态电流 •1μA最大开关关 •摆率控制 •热关断 •3ms的消隐故障标志 •欠压锁定 •温度范围：-40°C至+85ºC •热插拔用品 •媒体 •笔记本电脑 •PDA •外设端口 •USB端口 |
| 规格书PDF |
