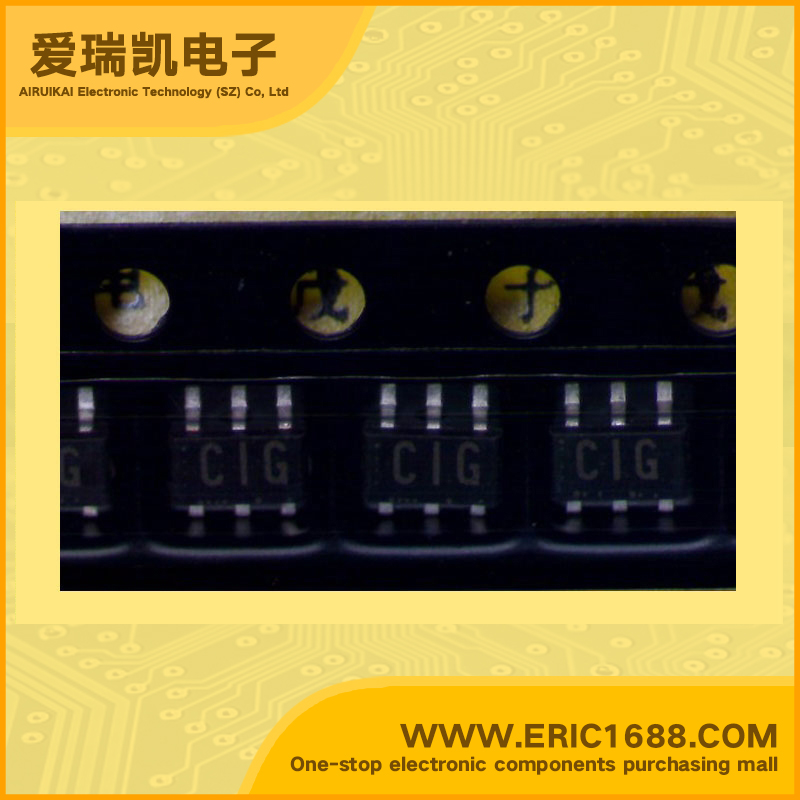

射频放大器 UPC2711G SOT-163 marking/标记 C1G
| 频率Frequency | 2.9GHz |
| P1dB | -4dBm |
| 增益Gain | 13dB |
| 噪声系数Noise Figure | 5dB |
| RF 类型RF Type | GPS,DBS,PCN |
| 电源电压Voltage - Supply | 5V |
| 电源电流Current - Supply | 12mA |
| 测试频率Test Frequency | |
| Description & Applications | FEATURES • 3 GHz SILICON MMIC WIDE-BAND AMPLIFIER • WIDE FREQUENCY RESPONSE: 3 GHz • HIGH GAIN: 15 dB (UPC2708T) • SATURATED OUTPUT POWER: +10 dBm (UPC2708T) • INTERNAL CURRENT REGULATION MINIMIZES GAIN CHANGE OVER TEMPERATURE • 5 V SINGLE SUPPLY VOLTAGE • SUPER SMALL PACKAGE • TAPE AND REEL PACKAGING OPTION AVAILABLE |
| 描述与应用 | 特点 •3 GHz硅MMIC宽带放大器 •宽广的频率响应范围：3 GHz的 •高增益：15分贝（UPC2708T） •饱和输出功率：+10 dBm的（UPC2708T） •内部电流调节最大限度地减少增益随温度变化 •5 V单电源电压 •超小包装 •磁带和卷轴包装可供选择 |
| 规格书PDF |
