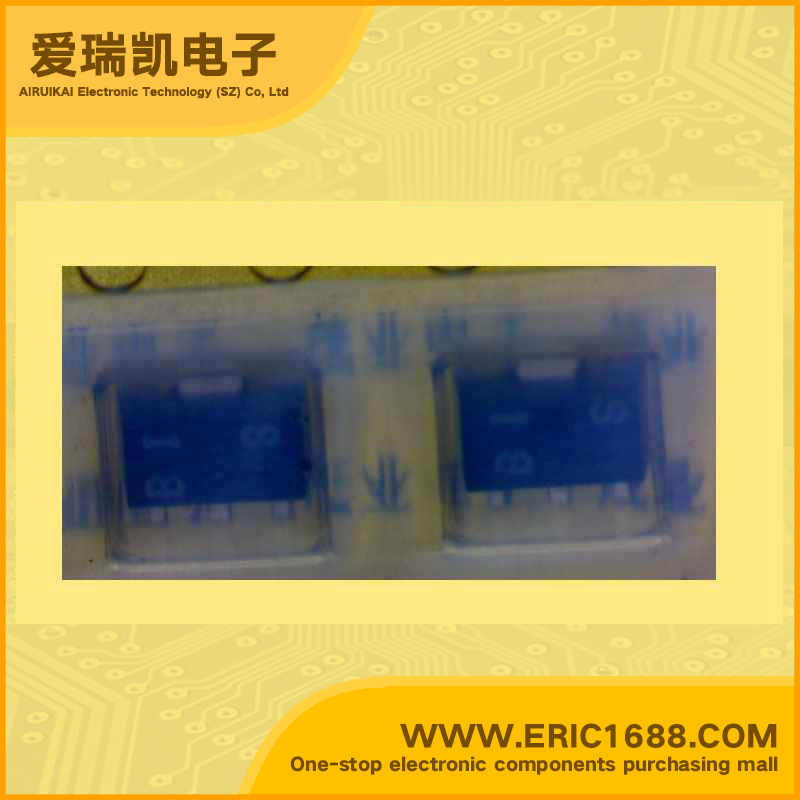

2SB1126 PNP三极管 -80V -1.5A 120MHz 4000 -1.5V SOT-89/PCP marking/标记 BI 电机驱动器/灯驱动器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -80V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −50V |
| 集电极连续输出电流ICCollector Current(IC) | -1.5A |
| 截止频率fTTranstion Frequency(fT) | 120MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 4000 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -1.5V |
| 耗散功率PcPoWer Dissipation | 500mW/0.5W |
| Description & Applications | PNP Silicon epitaxial planar transistor Applications Motors drivers, printer hammer, lamp drivers, relay drivers Feature High DC current gain Large current capacity and wide ASO Very small size making it easy to provide highdensity, small-sized hybrid IC’s |
| 描述与应用 | PNP硅外延平面晶体管 应用 电机驱动器，打印机锤子，灯驱动器，继电器驱动 特点 高直流电流增益 大电流容量，广ASO 规模非常小，因此很容易提供高密度，小型混合IC |
| 规格书PDF |
