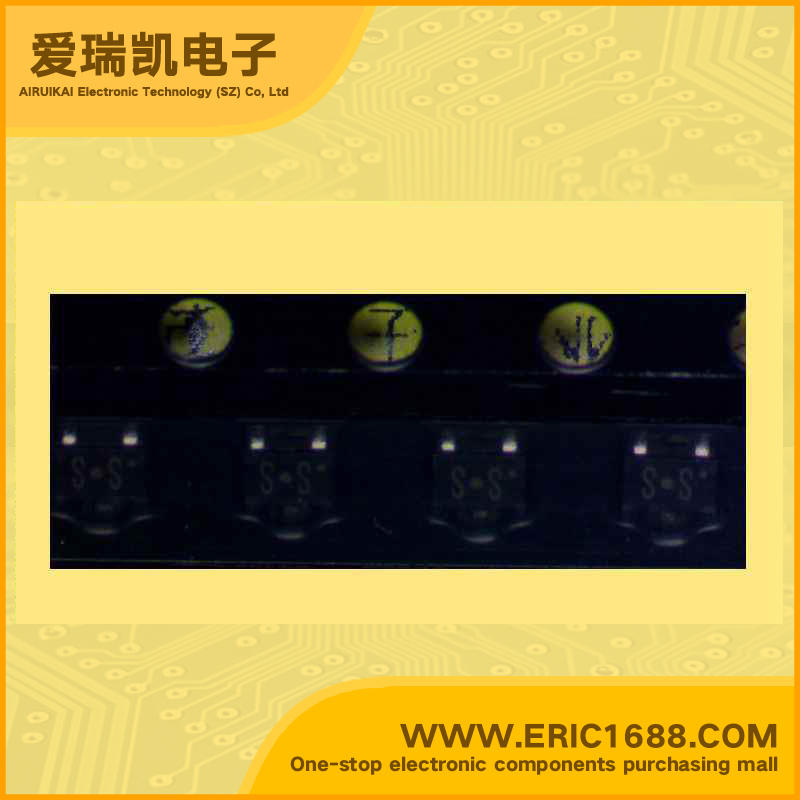

2SC3929-S NPN三极管 35V 50mA 80MHz 260~520 600mV/0.6V SOT-323/SC-70 marking/标记 SS 低频输出放大

热销商品

产品描述
集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO)35V
集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO)15V
集电极连续输出电流ICCollector Current(IC)50mA
截止频率fTTranstion Frequency(fT)80MHz
直流电流增益hFEDC Current Gain(hFE)260~520
管压降VCE(sat)Collector-Emitter Saturation Voltage600mV/0.6V
耗散功率PcPower Dissipation150mW/0.15W
Description & ApplicationsSilicon NPN epitaxial planer type For low-frequency output amplification Complementary to 2SA1531 and 2SA1531A Low noise voltage NV High foward current transfer ratio hFE S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing
描述与应用NPN硅外延平面型 用于低频输出放大 与2SA1531和2SA1531A互补 低噪声电压NV 高电流传输比HFE S-迷你型包装,通过带盒包装允许减小设备规模和自动插入
规格书PDF
