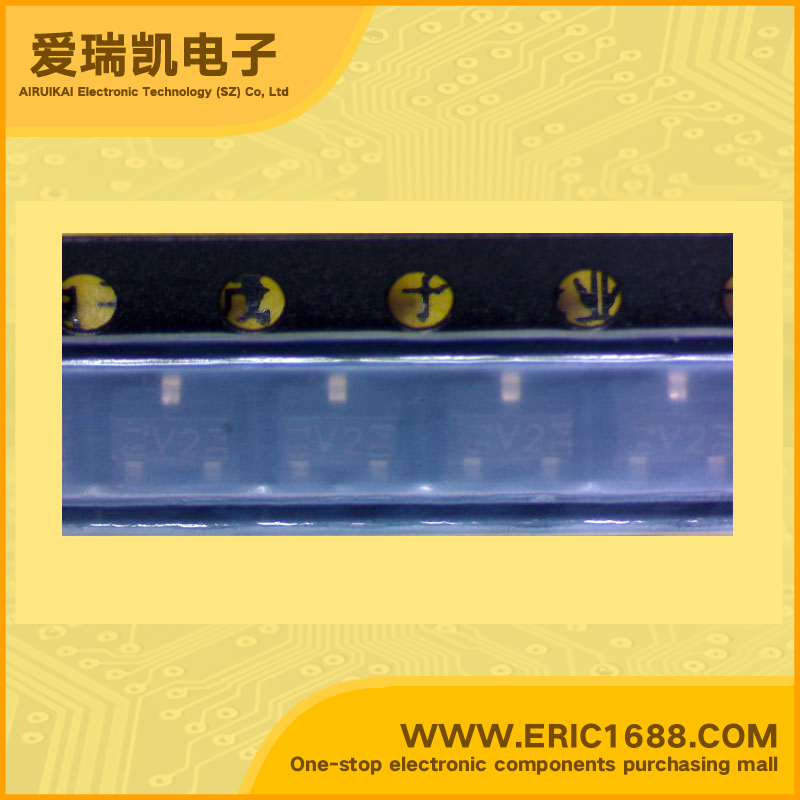

BFQ67 NPN三极管 20V 50mA 8Ghz 100 400mV/0.4V SOT-23/SC-59 marking/标记 V2 卫星电视调谐器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 20V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流ICCollector Current(IC) | 50mA |
| 截止频率fTTranstion Frequency(fT) | 8Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 100 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | 400mV/0.4V |
| 耗散功率PcPower Dissipation | 300mW/0.3W |
| Description & Applications | NPN 8 GHz wideband transistor FEATURES • High power gain • Low noise figure • High transition frequency • Gold metallization ensures excellent reliability. APPLICATIONS Satellite TV tuners and RF portable communications equipment up to2 GHz. |
| 描述与应用 | NPN8 GHz的宽带晶体管 特点 •高功率增益 •低噪声系数 •高转换频率 •黄金金属确保卓越的可靠性。 应用 卫星电视调谐器和高达TO2 GHz的RF便携式通信设备。 |
| 规格书PDF |
