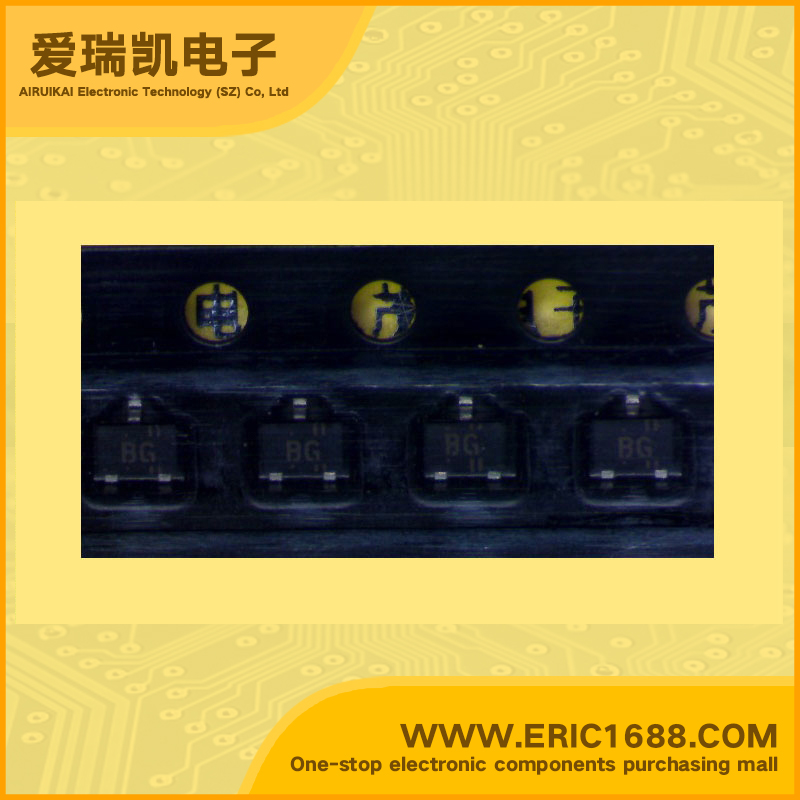

BRC144ECM 带阻NPN三极管 100mA/0.1A 47k 47k 增益70 SOT-323/CMPAK marking/标记 BG
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 70 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 0.15W/150mW |
| Description & Applications | Features • Built–in Resistor Type • Simplifies Circuit Design • Reduces Board Space • Complementary pair with BRA144ECM series |
| 描述与应用 | 特性 •内置电阻型 •简化电路设计 •缩小板级空间 •BRA144ECM系列互补配对 |
