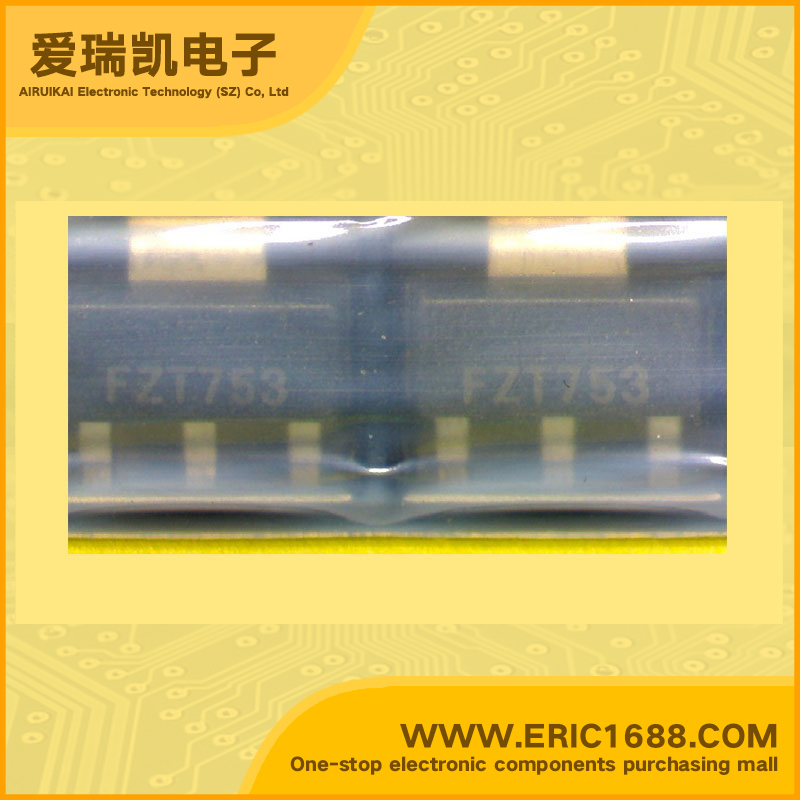

FZT753TA PNP三极管 -120V -2A 140MHz 100~300 -500mV/-0.5V SOT-223 marking/标记 FZT753 低饱和电压
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -120V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −100V |
| 集电极连续输出电流ICCollector Current(IC) | -2A |
| 截止频率fTTranstion Frequency(fT) | 140MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | −500mV/-0.5V |
| 耗散功率PcPoWer Dissipation | 2W |
| Description & Applications | PNP SILICON PLANAR MEDIUM POWER TRANSISTOR FEATURES Low saturation voltage Excellent hFE COMPLEMENTARY TYPE FZT653 |
| 描述与应用 | PNP硅平面中等功率晶体管 特点 低饱和电压 优秀HFE 互补型FZT653 |
| 规格书PDF |
