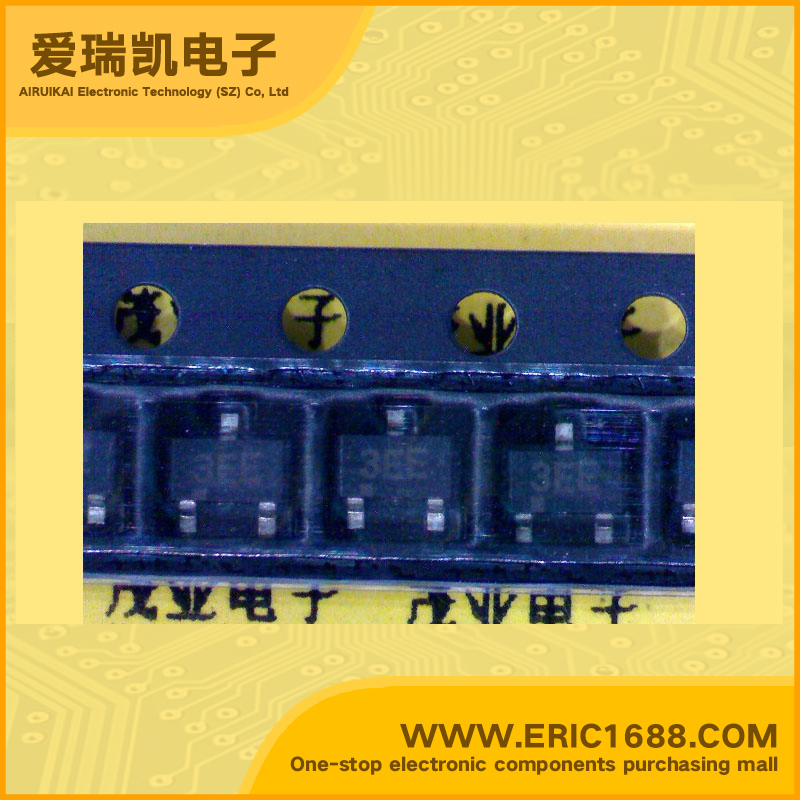

HA17L431ALTPEL 电压基准电源IC 1.24V~16V SOT-23 marking/标记 3EE 高精度变并联稳压器
| 参考类型Reference Type | |
| 输出电压VoVoltage - Output | 1.24V~16V |
| 误差Tolerance | ±1% |
| 温度系数Temperature Coefficient | 30ppm/°C |
| 输入电压Voltage - Input | 1.24V~16V |
| 阴极电流Current - Cathode | 1mA |
| 输出电流IOUTCurrent - Output | 50mA |
| Description & Applications | FEATURES • High-Precision Variable Shunt Regulators • On-chip high-precision reference voltage source : 1.240 V ± 1.0% (Ta = 25°C) [HA17L431A]: 1.240 V ± 1.5% (Ta = 25°C) [HA17L431] • Small reference voltage temperature coefficient: 30 ppm/°C Typ • Maximum cathode voltage: 16 V • Maximum cathode current: 50 mA • Minimum cathode current: 200 µA Typ • Operating temperature range: −20 to +85°C Application Example • Reference voltage generation circuits, etc. |
| 描述与应用 | 特点 •高精度变并联稳压器 •片上高精度参考电压源：1.240 V±1.0％（TA=25°C）[HA17L431A]：1.240 V±1.5％（大= 25°C）[HA17L431] •小参考电压温度系数：30 PPM /°C典型值 •最大阴极电压：16 V •最大阴极电流：50mA •最小阴极电流：200μA（典型值） •工作温度范围：-20至+85°C 应用实例 •参考电压产生电路等。 |
| 规格书PDF |
