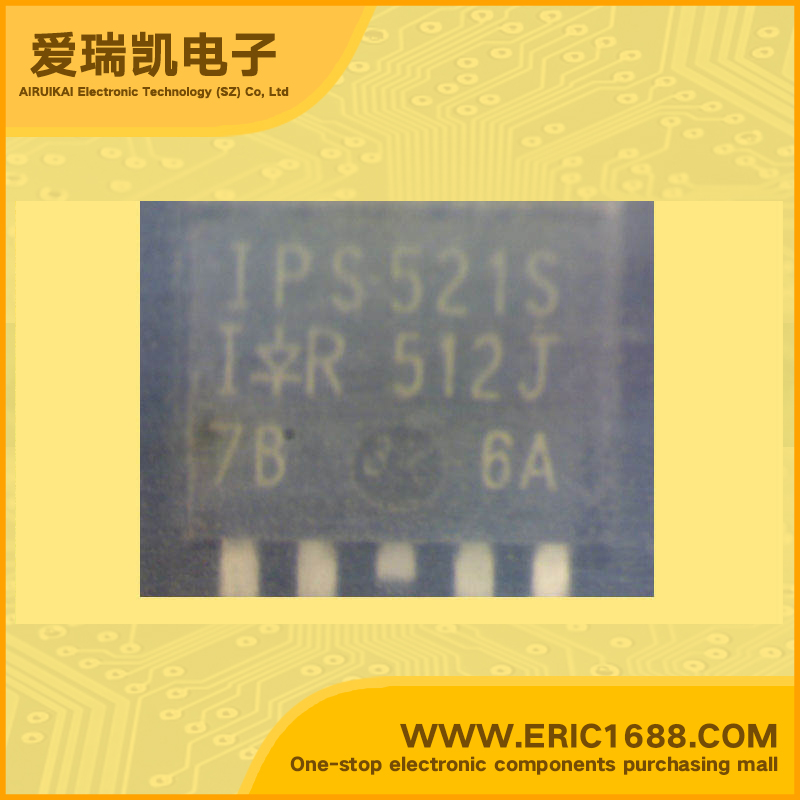

IPS521S 电源分配开关电源IC TO-263-5/SMD220-5 marking/标记 IPS521S 充分保护高侧功率MOSFET开关
| 类型Type | 高端开关 high-side |
| 输出数Number of Outputs | 1 |
| Rds (On) | 55mΩ@5V |
| 内部开关Internal Switch(s) | 有 YES |
| 电流限制Current Limit | 2.2A |
| 电压 - 输入Voltage - Input | 5.5V~35V |
| Description & Applications | •FULLY PROTECTED HIGH SIDE POWER MOSFET SWITCH •Over temperature protection (with auto-restart) • Short-circuit protection (current limit) • Active clamp • E.S.D protection • Status feedback • Open load detection • Logic ground isolated from power ground |
| 描述与应用 | •充分保护高侧功率MOSFET开关 •过温保护（自动重启） •短路保护（电流限制） •有源钳位 •E.S.D保护 •状态反馈 •负载开路检测 •逻辑地隔离电源 |
| 规格书PDF |
