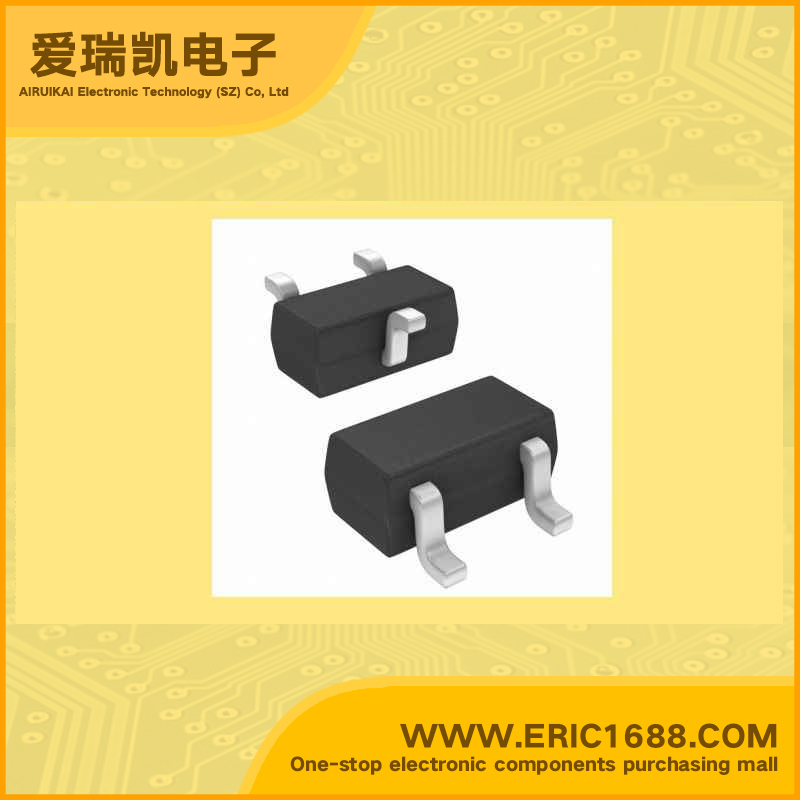

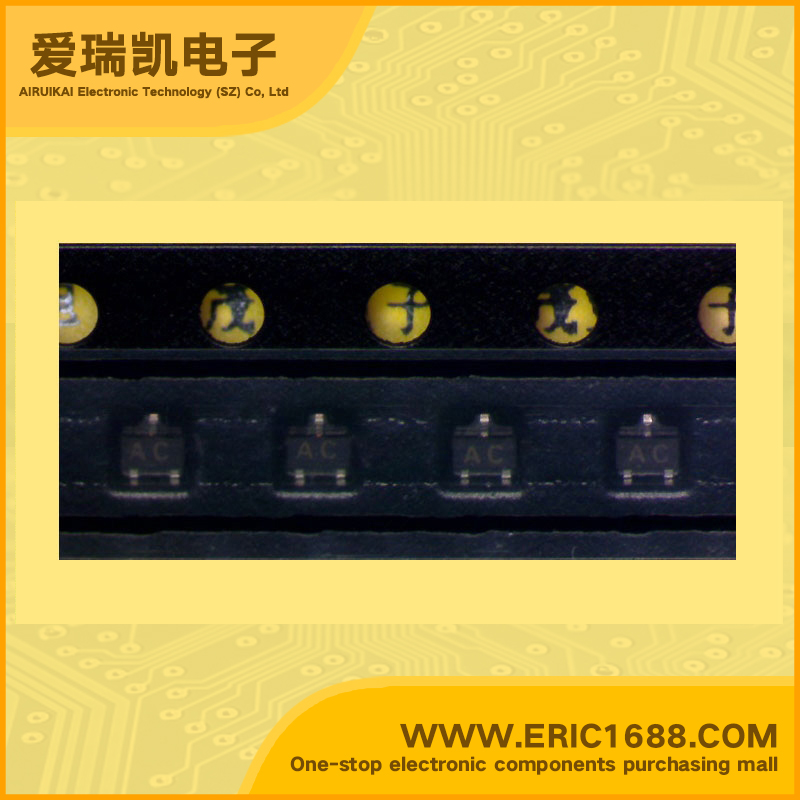

MT3S06S NPN三极管 10V 15mA 7Ghz~10Ghz 70~140 SOT-523/SSM marking/标记 AC VHF?UHF频段低噪声放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | 10V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | 5V |
| 集电极连续输出电流ICCollector Current(IC) | 15mA |
| 截止频率fTTranstion Frequency(fT) | 7Ghz~10Ghz |
| 直流电流增益hFEDC Current Gain(hFE) | 70~140 |
| 管压降VCE（sat）Collector-Emitter Saturation Voltage | |
| 耗散功率PcPower Dissipation | |
| Description & Applications | • VHF~UHF Band Low Noise Amplifier Applications • Low noise figure: NF = 1.6dB (VCE = 3 V, IC = 3 mA, f = 2 GHz) • High gain: |S21e|2 = 9.5dB (VCE = 3 V, IC = 7 mA, f = 2 GHz) " |
| 描述与应用 | •VHF〜UHF频段低噪声放大器的应用 •低噪声系数：NF=1.6分贝（VCE=3 V，IC =3毫安，F =2吉赫） •高增益：S21E|2=9.5分贝（VCE= 3 V，IC =7毫安，F =2 GHz）的“ |
| 规格书PDF |
